Ships within 19 days
Contact Configuration
Model No
View
View
View
View

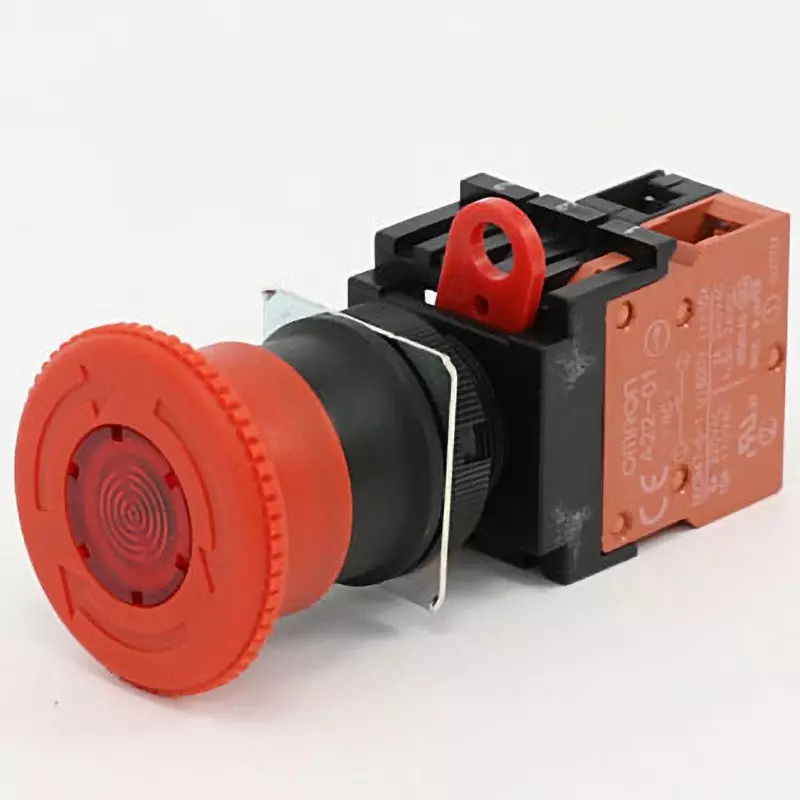

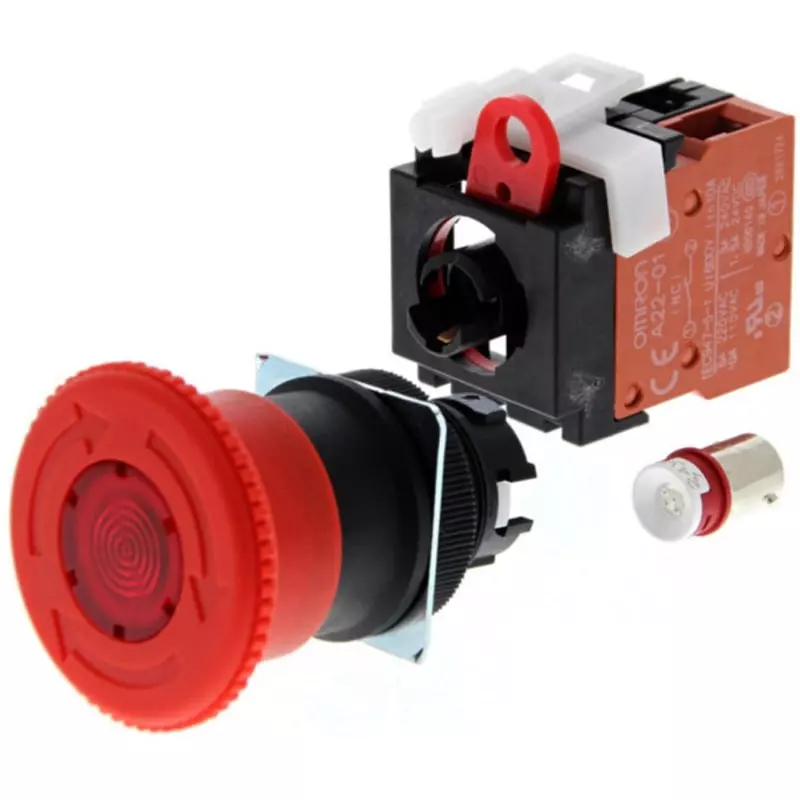

| Model No | A22EL-M-12A-01 |
| Type of Product | Pushbutton Switch for Emergency Stop |
| Protection Class | IP65 (from front of panel) |
| Type | Switch Alone |
Model No |
A22EL-M-12A-01 |
Type of Product |
Pushbutton Switch for Emergency Stop |
Protection Class |
IP65 (from front of panel) |
Type |
Switch Alone |
Operating Temperature Range |
-20 to +55 ℃ (with no icing or condensation) |
Withstand Voltage |
Between homopolar terminals, between each terminal and ground: 2500 V AC 50/60 Hz for 1 min. |
Monotaro ID |
38992597 |
Storage Temperature |
-40 to 70℃ |
Contact Configuration |
1NC(1) |
Mounting Hole Diameter (Φmm) |
22/25 |
Applicable Voltage (V) |
AC/DC 12±5% |
Country of Origin |
Japan |
Rated Voltage (V) |
AC/DC 12 |
Terminal Type |
Screw terminal (M3.5) |
Type of Illumination |
Illumination (LED direct illumination AC/DC 24 V LED included) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-20 to 55 (no freezing or condensation) |
Insulation Resistance (MOhm) |
100 mΩ Or More (With DC 500 V Mega) |
Contact Resistance (ohm) |
100 mΩ or Less (initial value) |
Specifications |
Confirm Delivery Date Each Time |
Stroke (mm) |
Minimum direct opening stroke: 11 |
