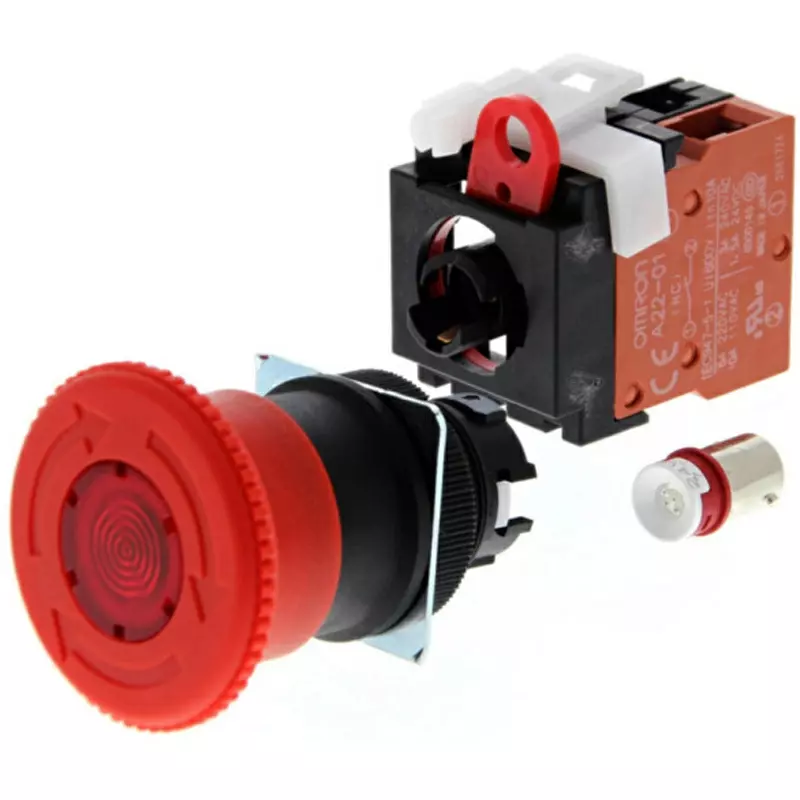

| Model No | A22EL-M-12A-02 |
| Type of Product | Pushbutton Switch |
| Protection Class | IP65 |
| Type | Emergency Stop |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
A22EL-M-12A-02 |
Type of Product |
Pushbutton Switch |
Protection Class |
IP65 |
Type |
Emergency Stop |
Operating Temperature Range |
-20 to +55°C (With No Icing or Condensation) |
Withstand Voltage |
Between Homopolar Terminals, Between Each Terminal and Ground: 2500 VAC 50/60 Hz for 1 min |
Monotaro ID |
38992606 |
Storage Temperature |
-40 to +70°C (With No Icing or Condensation) |
Button Shape |
Medium-Sized Mushroom (Φ40 mm) |
Button Color |
Red |
Contact Configuration |
2b |
Light Source |
LED |
Applicable Voltage (V) |
AC/DC12 |
Country of Origin |
JAPAN |
Terminal Type |
Screw Terminal (M3.5) |
Type of Illumination |
LED Lamp |
Mounting Hole Diameter |
Φ22/25 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
