| Type | With G5Q Relay |
| Weight | 270 g |
| Features | LED & Free Wheeling Diode Across Coil, Jumpers For Coil Looping |
| Type of Product | General Purpose Relay Module |
Type |
With G5Q Relay |
Weight |
270 g |
Features |
LED & Free Wheeling Diode Across Coil, Jumpers For Coil Looping |
Type of Product |
General Purpose Relay Module |
Model No |
AS655-24V-S-G5Q |
No. of Channels |
8 |
Country of Origin |
India |
Coil Voltage |
24 V DC |
Mounting Type |
35 mm DIN Rail |

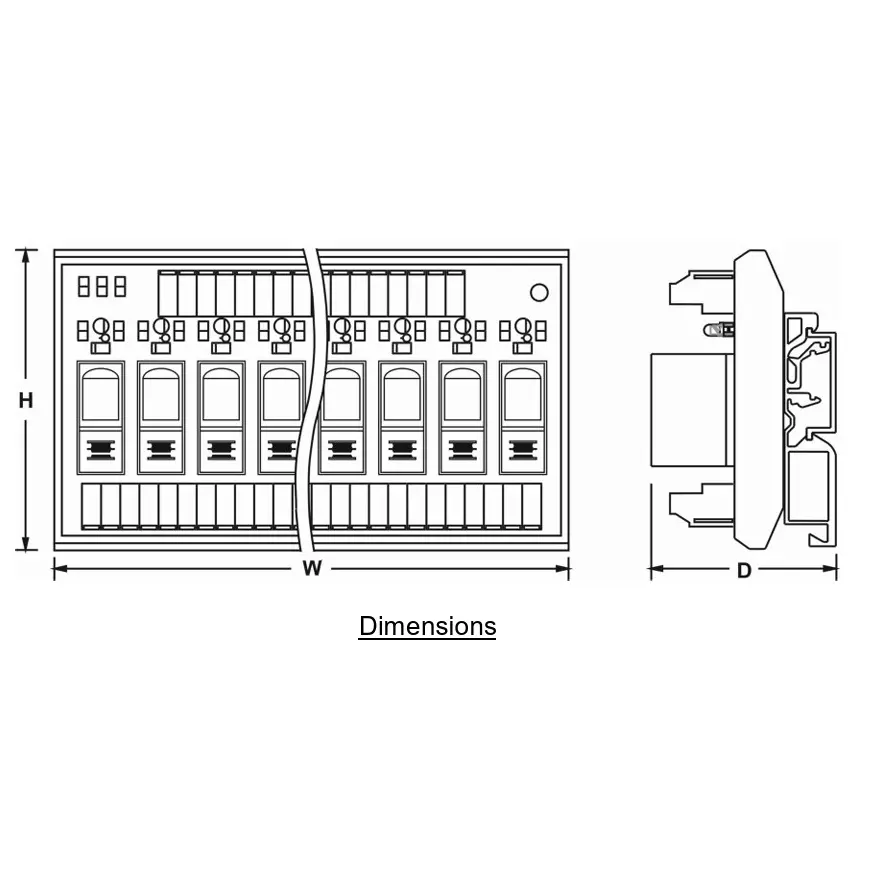

Dimension |
137x80x58 mm |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Contact Configuration |
1 C/O |
Relay Socket |
Socket Mounted |
Termination |
Screw Type |
Contact Rating |
Relay : 10 A @ 230 V AC, 5 A @ 30 V DC, On Board : 5 A @ 28 V DC/230 V AC |
Coil Current |
22 mA @ 24 V DC Per Channel |
