| Weight | 500 g |
| Features | LED & Free Wheeling Diode Across Coil. |
| Type of Product | CNC Specific Relay Module |
| Model No | AS717-S-OE |
Weight |
500 g |
Features |
LED & Free Wheeling Diode Across Coil. |
Type of Product |
CNC Specific Relay Module |
Model No |
AS717-S-OE |
No. of Channels |
16 |
Country of Origin |
India |
Coil Voltage |
24 V DC |
Mounting Type |
35 mm DIN Rail |

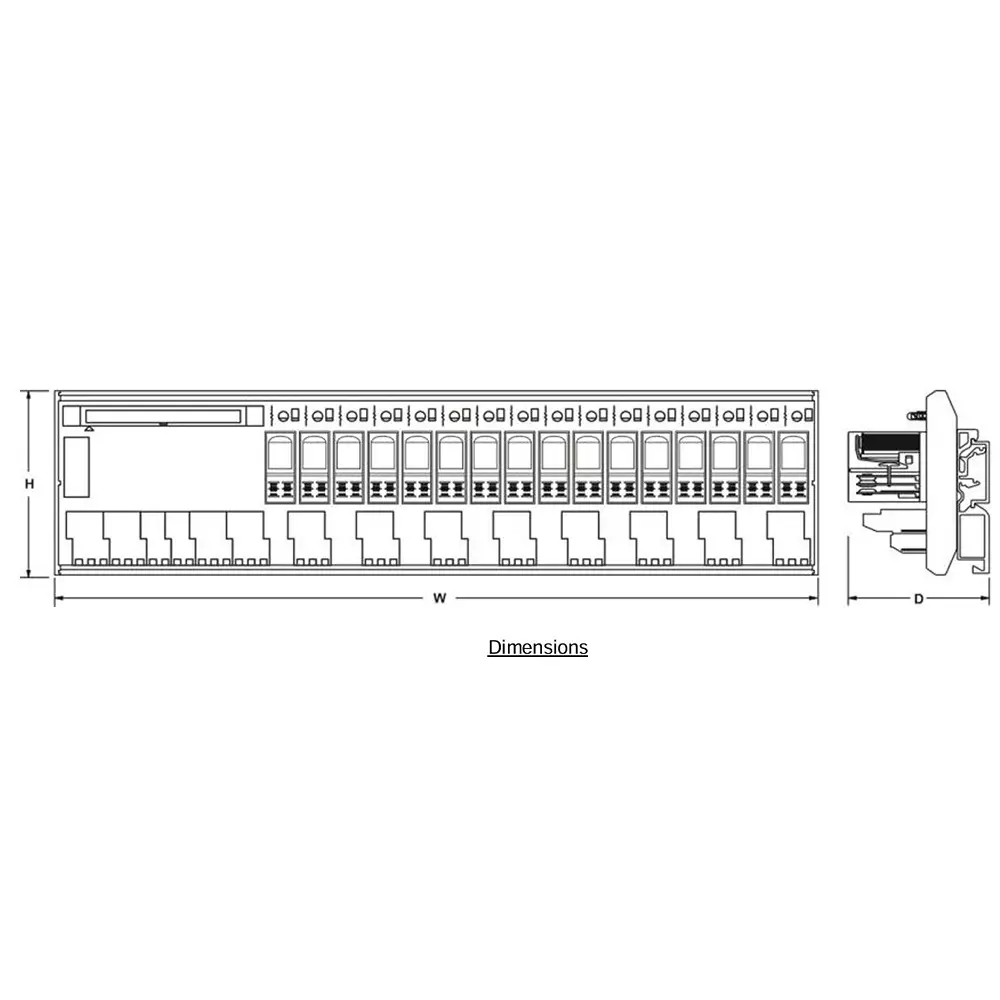

Dimension |
315x80x70 mm |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Relay Make |
OEN 58 |
Contact Configuration |
1 C/O |
Relay Socket |
Socket Mounted |
Termination |
Coil: 50 Pin Male FRC Connector, Contact: Screw |
Contact Rating |
Relay: 10 A @ 28 V DC/230 V AC, On Board: 5 A @ 28 V DC/230 V AC |
Coil Current |
25 mA Per Channel |
Input |
24 Inputs, 24 V DC each |
