Ships within 60 days
View
View
View
View
| Type | With Fuse at Poles, Looped coils |
| Weight | 400 g |
| Features | LED & Free Wheeling Diode Across Coil, Reverse Polarity Blocking Diode |
| Type of Product | Relay Module |
Type |
With Fuse at Poles, Looped coils |
Weight |
400 g |
Features |
LED & Free Wheeling Diode Across Coil, Reverse Polarity Blocking Diode |
Type of Product |
Relay Module |
Model No |
AS505-24V-P-S-OE-230VAC-2A |
No. of Channels |
8 |
Country of Origin |
India |
Coil Voltage |
24 V DC |
Mounting Type |
35 mm DIN Rail |

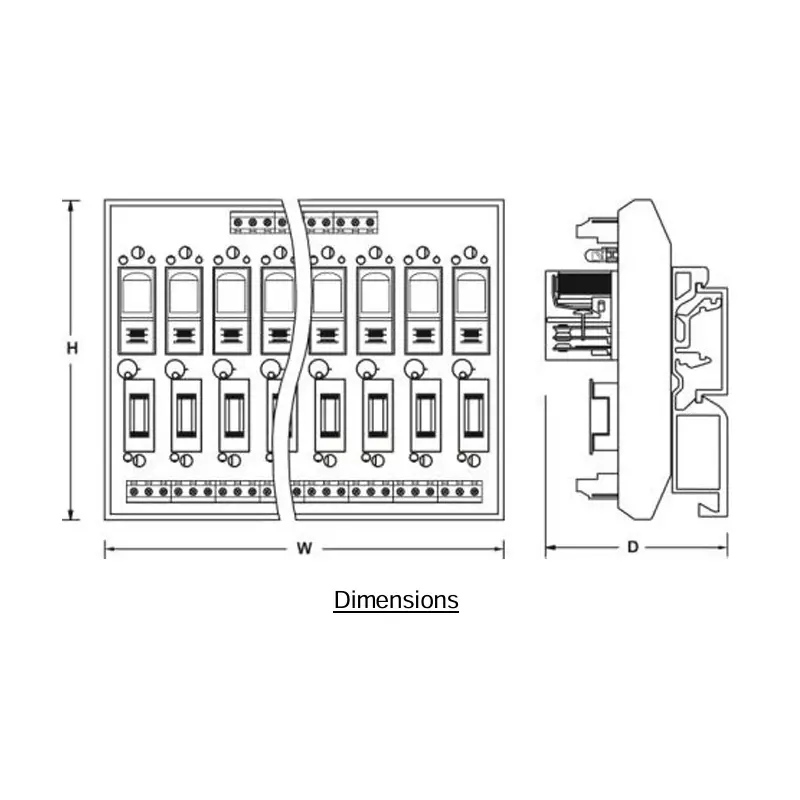

Dimension |
137x115x70 mm |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Relay Make |
OEN 58 |
Contact Configuration |
1 C/O |
Relay Socket |
Socket Mounted |
Coil Looping |
Positive Looping |
Termination |
Screw Type |
Contact Rating |
2 A @ 230 V AC |
Coil Current |
25 mA Per Channel |
