| Weight | 400 g |
| Features | LED & Free Wheeling Diode Across Coil, Reverse Polarity Blocking Diode. |
| Type of Product | Relay Module |
| Model No | AS789-24V-N-OE |
Weight |
400 g |
Features |
LED & Free Wheeling Diode Across Coil, Reverse Polarity Blocking Diode. |
Type of Product |
Relay Module |
Model No |
AS789-24V-N-OE |
No. of Channels |
8 |
Country of Origin |
India |
Coil Voltage |
24 V DC |
Mounting Type |
35 mm DIN Rail |

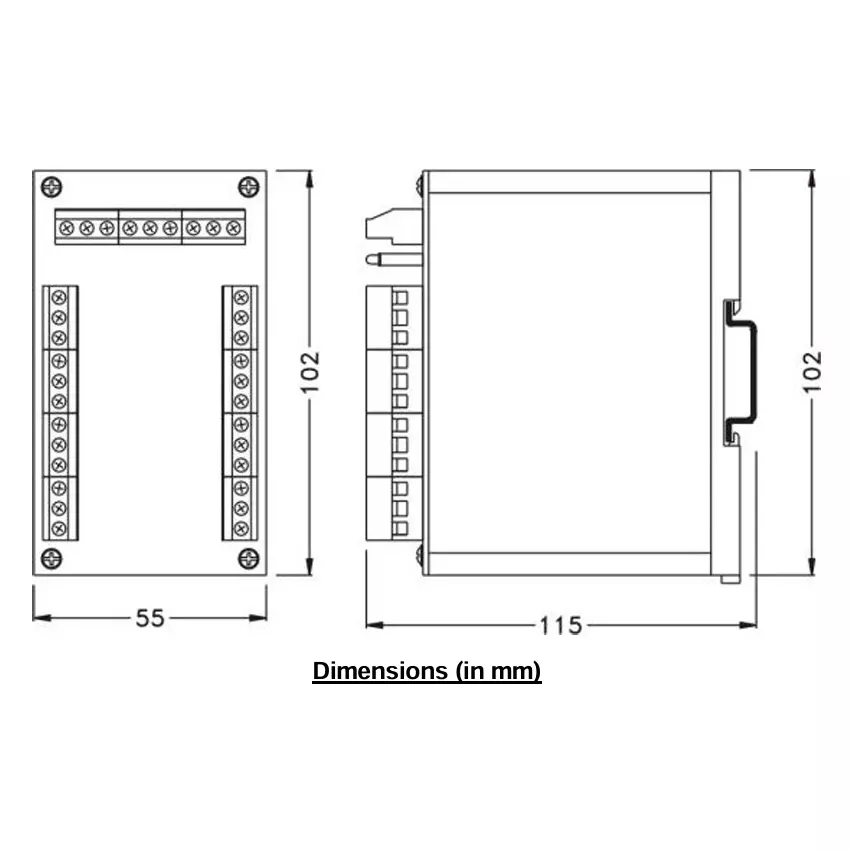

Dimension |
55x115x102 mm |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Relay Make |
OEN 58 |
Contact Configuration |
1 C/O |
Relay Socket |
Directly Soldered |
Coil Looping |
Negative Looping |
Termination |
Screw Type |
Contact Rating |
Relay: 10 A @ 28 V DC/230 V AC, On Board: 5 A @ 28 V DC/230 V AC |
Coil Current |
25 mA Per Channel |
Model Type |
Space Saver |
