| Type | With High voltage Isolated Coils and Fuse at Poles |
| Weight | 280 g |
| Features | LED Across Coil, Fuse At Pole & Fuse Fail Indication |
| Type of Product | Relay Module |
Type |
With High voltage Isolated Coils and Fuse at Poles |
Weight |
280 g |
Features |
LED Across Coil, Fuse At Pole & Fuse Fail Indication |
Type of Product |
Relay Module |
Model No |
AS803-110VAC-S-OE-230VAC-5A |
No. of Channels |
4 |
Country of Origin |
India |
Coil Voltage |
110 V AC |
Mounting Type |
35 mm DIN Rail |

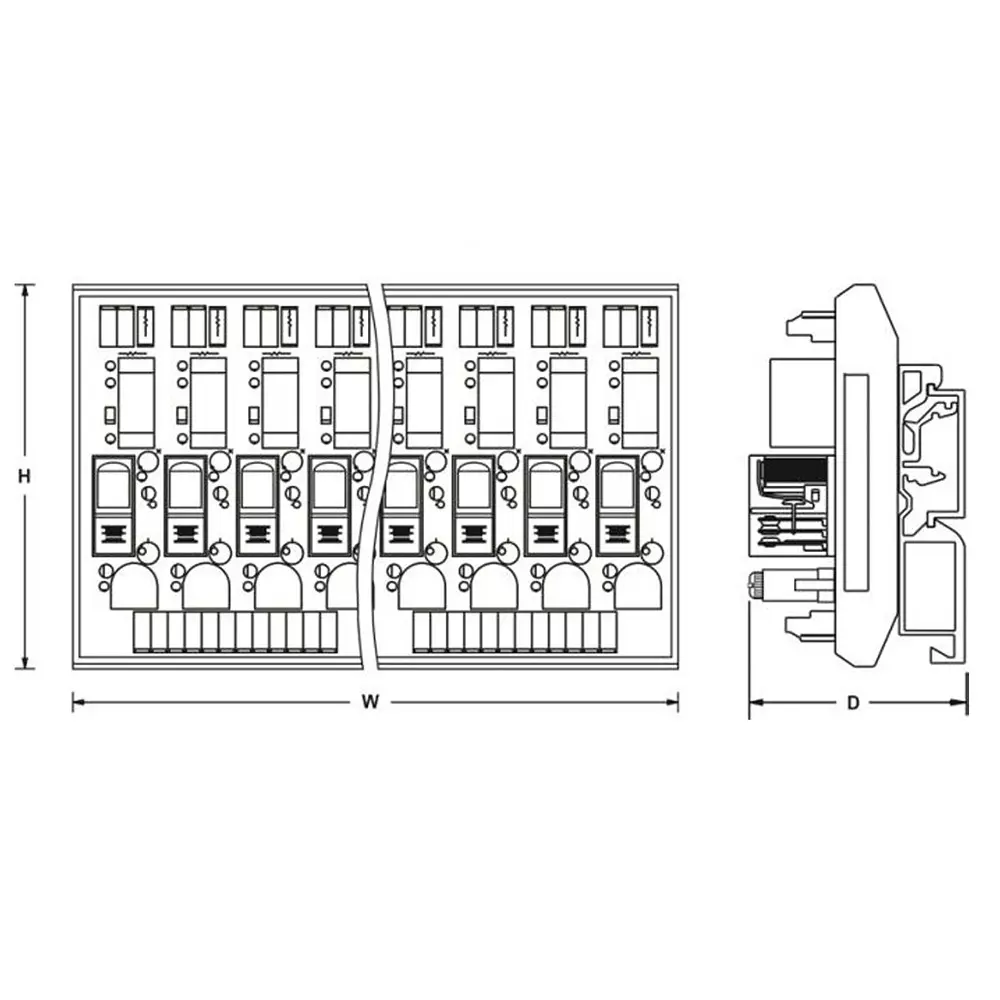

Dimension |
87.5x108x70 mm |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Relay Make |
OEN 58 |
Contact Configuration |
1 C/O |
Relay Socket |
Socket Mounted |
Coil Looping |
Isolated |
Termination |
Screw Type |
Contact Rating |
5 A @ 230 V AC |
Coil Current |
25 mA Per Channel |
