| Type | With Looped Coils |
| Weight | 100 g |

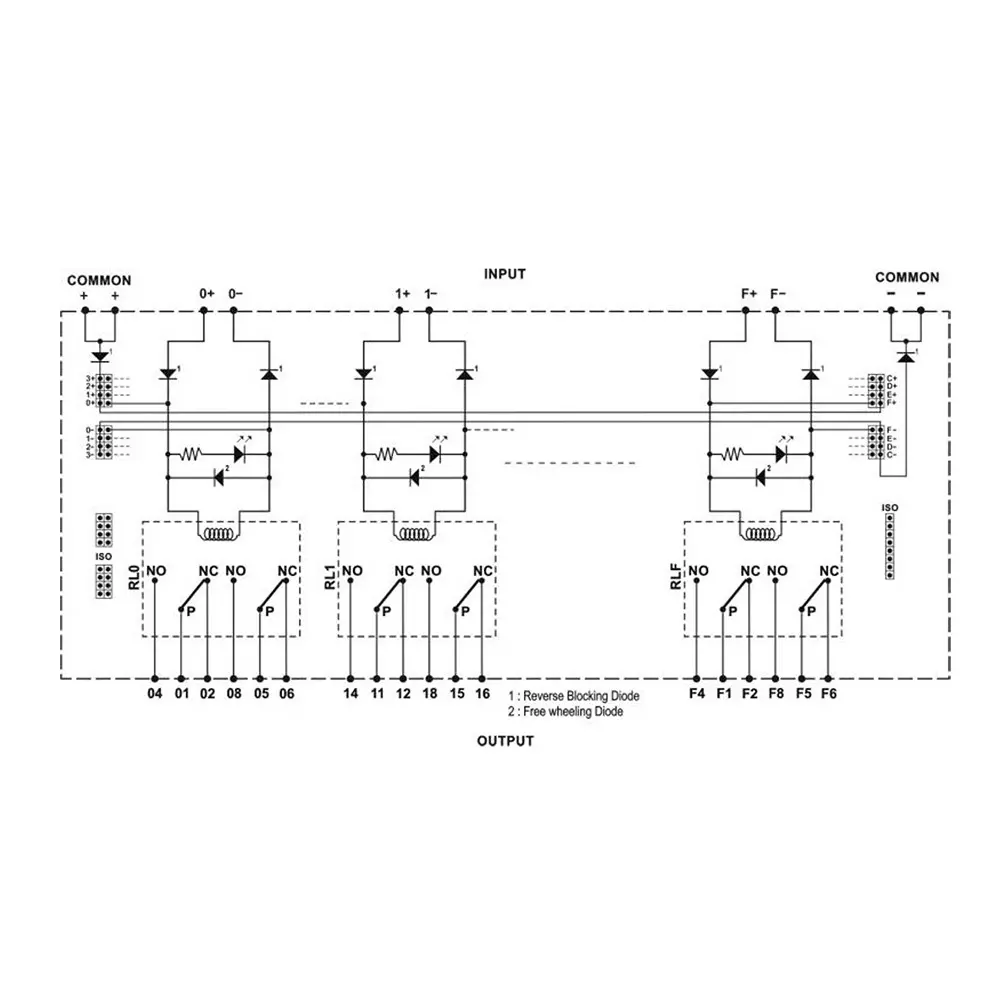

| Features | LED & Free Wheeling Diode Across Coil, Reverse Blocking Diode, Jumpers For Coil Looping |
| Type of Product | Relay Module |
Type |
With Looped Coils |
Weight |
100 g |
Features |
LED & Free Wheeling Diode Across Coil, Reverse Blocking Diode, Jumpers For Coil Looping |
Type of Product |
Relay Module |
Model No |
AS391-6V-S-OE |
No. of Channels |
1 |
Country of Origin |
India |
Coil Voltage |
6 V DC |
Mounting Type |
35 mm DIN Rail |

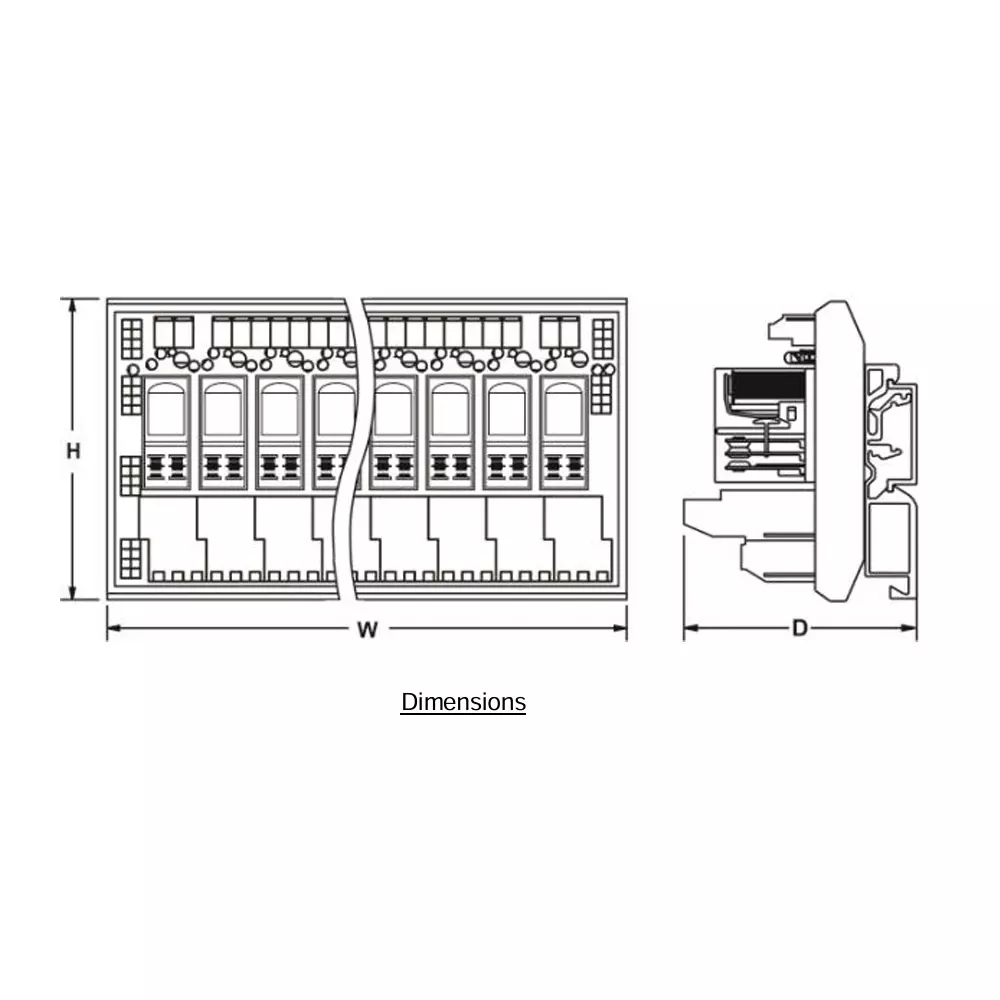

Dimension |
24x80x70 mm |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Relay Make |
OEN 58 |
Contact Configuration |
2 C/O |
Relay Socket |
Socket Mounted |
Coil Looping |
Isolated (With Jumpers for Looping) |
Termination |
Screw Type |
Contact Rating |
Relay : 5 A @28 V DC/230 V AC, On Board : 5 A @ 28 V DC/230 V AC |
Coil Current |
95 mA Per Channel |
Model Type |
Standard |
