| Type | With Coil Connection Through FRC / HE10 |
| Weight | 650 g |
| Features | Reverse Blocking Diode |
| Type of Product | Relay Module |
Type |
With Coil Connection Through FRC / HE10 |
Weight |
650 g |
Features |
Reverse Blocking Diode |
Type of Product |
Relay Module |
Model No |
AS334-24V-N-S-OE |
Country of Origin |
India |
Coil Voltage |
24 V DC |
Dimension |

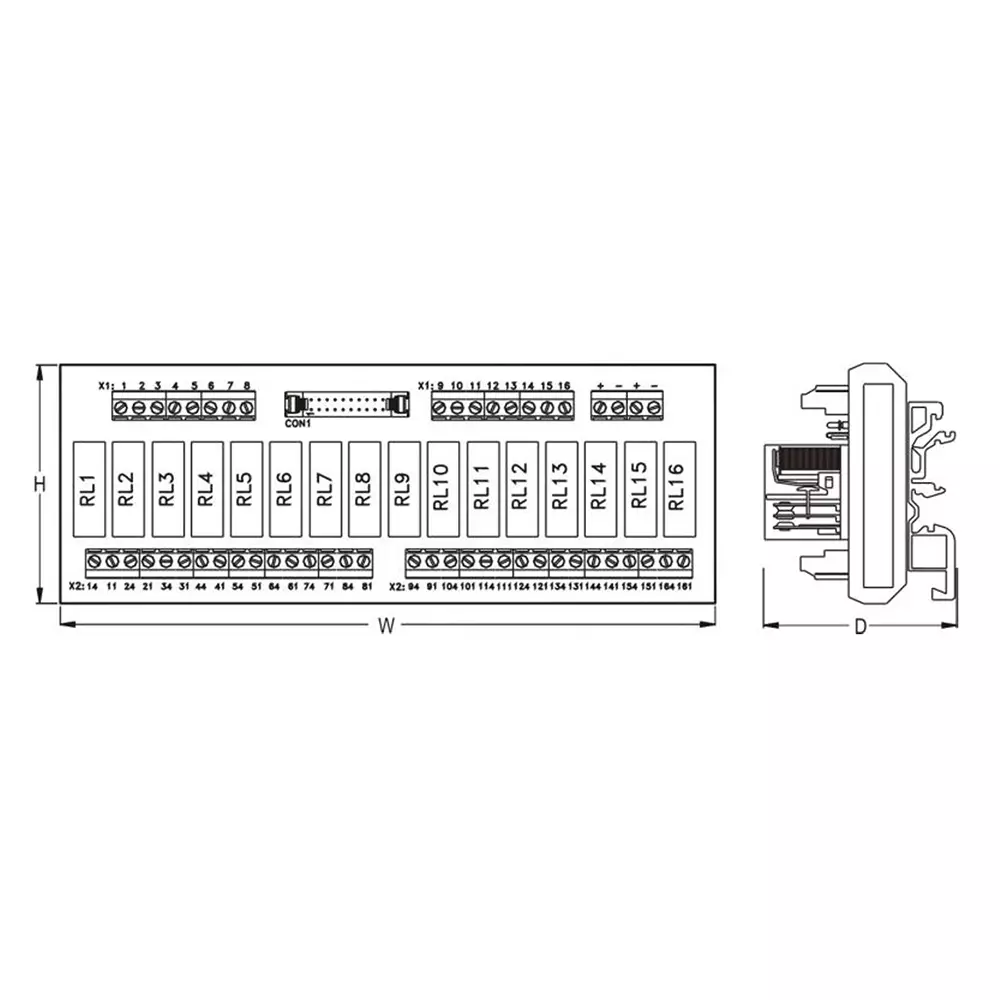

228x80x70 mm |
Operating Temperature |
0-55°C |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Relay Make |
OEN 58 |
Operating Humidity |
85% RH |
Number of Relay |
16 |
Input Current |
25 mA Per Channel |
Contact Configuration |
1 N/O |
Storage Temperature |
-20°C to 85°C |
Relay Socket |
Socket Mounted |
Release Voltage |
4.8 V DC |
Operating Voltage |
19.2 V DC |
Coil Looping |
Negative Looping |
