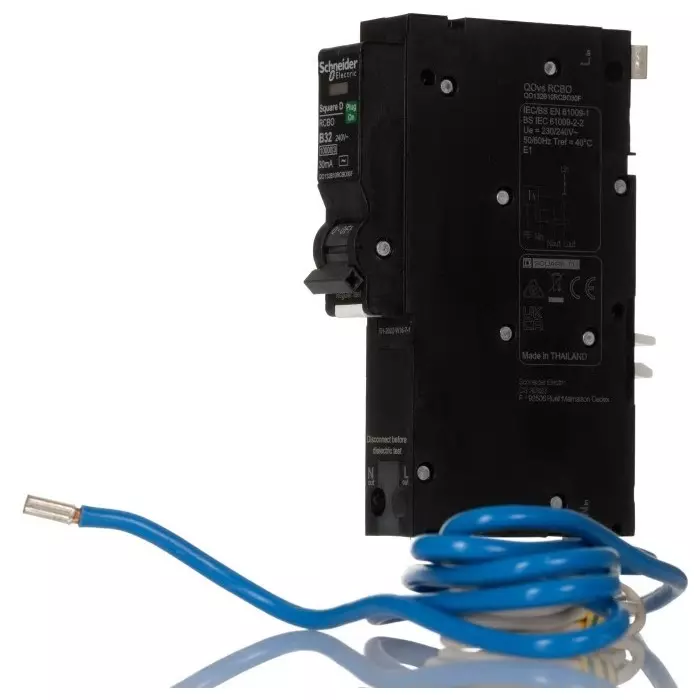

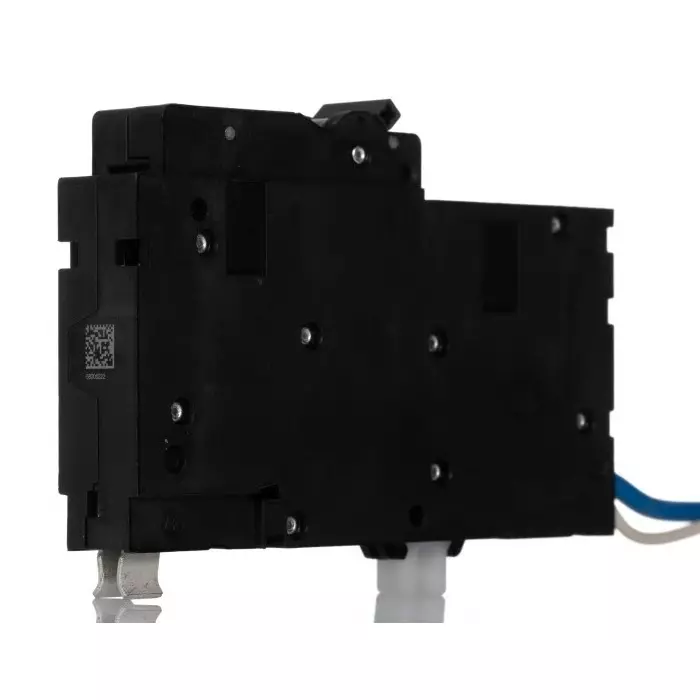

| Type of Product | RCBO |
| Model No | QO132B10RCBO30F |
| Sensitivity | 30 mA |
| Current Rating | 32 A |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
RCBO |
Model No |
QO132B10RCBO30F |
Sensitivity |
30 mA |
Current Rating |
32 A |
Series |
QOVS |
No. of Pole |
1 |
Application |
Distribution |
Range |
Square D |
Country of Origin |
Thailand |
Characteristic |
Type B |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Circuit Type |
RCBO |
Mounting Style |
Plug-On Mount |
Contact Type |
Tunnel Terminal |
Rated Voltage (AC) |
240 V |
Break Time |
Instantaneous |
Better World Verification |
Green Premium |
Better World Product |
Yes |
Overall Depth |
85 mm |
Overall Dimensions |
110x19x85 mm |
Mechanism |
Thermal-Magnetic |
Overall Length |
110 mm |
Protection Type |
AC |
Breaking Capacity at Maximum Voltage Rating |
7.5 kA |
Overall Width |
19 mm |
Special Features |
Short Circuit Protection |
