| Type of Product | Link Ball Rod End |
| Model No | BL5DA |
| Thread Type | Right-Hand Thread Type |
| Material | Holder / High-strength aluminum alloy (A-1 alloy) Shank with ball (light carburized carbon steel ball hardness) / Hv650 or more Shank with ball (shank) / S35C (HRC20-28, chromate treatment) Boot / NBR special synthetic rubber |
Type of Product |
Link Ball Rod End |
Model No |
BL5DA |
Thread Type |
Right-Hand Thread Type |
Material |
Holder / High-strength aluminum alloy (A-1 alloy) Shank with ball (light carburized carbon steel ball hardness) / Hv650 or more Shank with ball (shank) / S35C (HRC20-28, chromate treatment) Boot / NBR special synthetic rubber |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
16646464 |
Mass (g) |
12 |

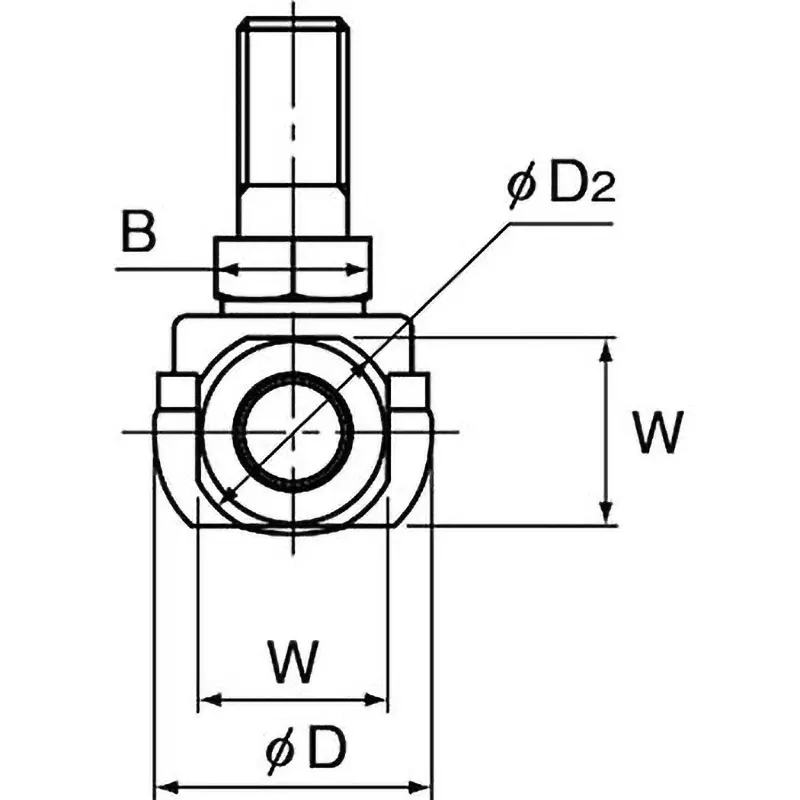

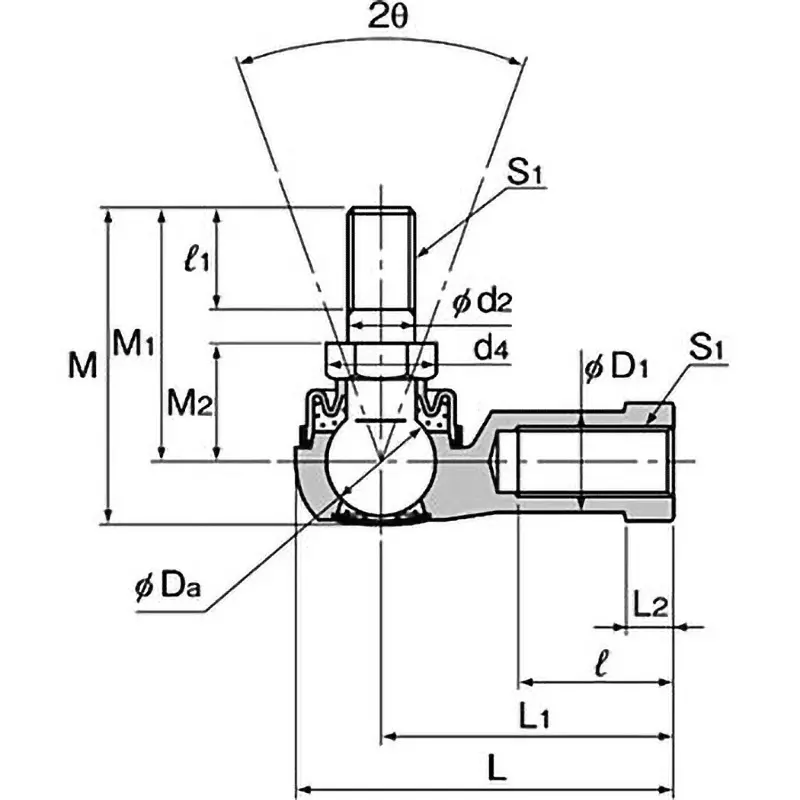

Dimension d2 (Φmm) |
5 |
Dimension d1 (Φmm) |
9 |
Dimension B (Φmm) |
8 |
Dimension L (mm) |
15 |
Dimension L1 |
27 mm |
Diameter D (Φmm) |
15 |
Height H (mm) |
26.7 |
Dimension S1 (mm) |
M5x0.8 |
Dimension d4 (mm) |
9.1999999999999993 |
Length L (mm) |
34.5 |
Dimension M1 (mm) |
21 |
Ball diameter (mm) |
9.5250000000000004 |
Dimension L2 |
4 mm |
JIS Class |
JIS Class 2 |
Dimension D2 (mm) |
12 |
Dimension W |
10 mm |
