| Type of Product | Link Ball Rod End |
| Model No | BL4DA |
| Thread Type | Right-Hand Thread Type |
| Material | Holder / High-strength aluminum alloy (A-1 alloy) Shank with ball (light carburized carbon steel ball hardness) / Hv650 or more Shank with ball (shank) / S35C (HRC20-28, chromate treatment) Boot / NBR special synthetic rubber |
Type of Product |
Link Ball Rod End |
Model No |
BL4DA |
Thread Type |
Right-Hand Thread Type |
Material |
Holder / High-strength aluminum alloy (A-1 alloy) Shank with ball (light carburized carbon steel ball hardness) / Hv650 or more Shank with ball (shank) / S35C (HRC20-28, chromate treatment) Boot / NBR special synthetic rubber |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
32607653 |
Mass (g) |
7 |

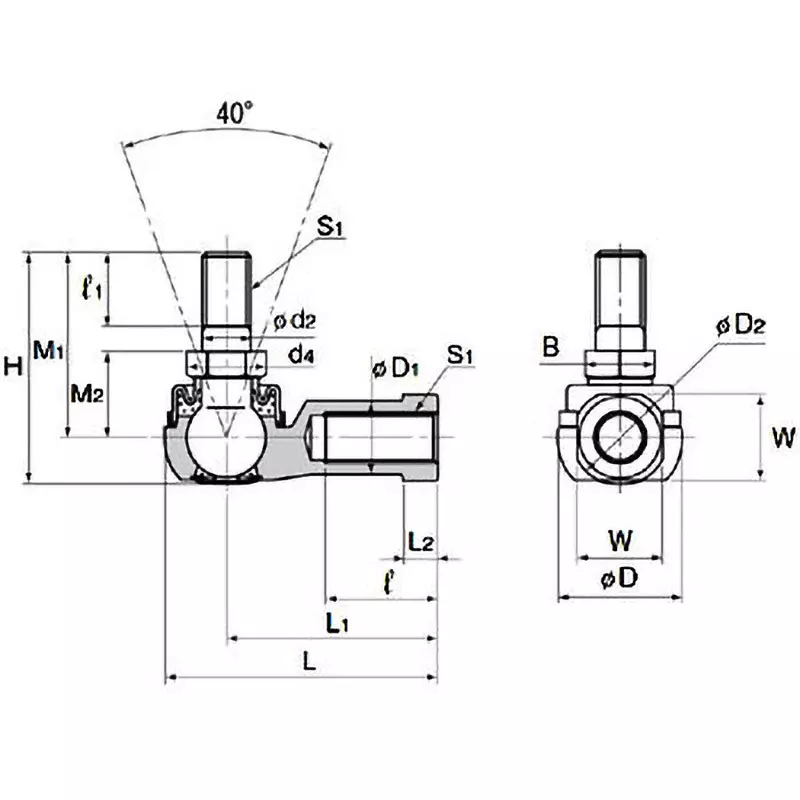

Dimension d2 (Φmm) |
4 |
Dimension d1 (Φmm) |
7.5 |
Dimension B (Φmm) |
7 |
Dimension L (mm) |
8 |
Dimension L1 |
18 mm |
Diameter D (Φmm) |
13 |
Height H (mm) |
20 |
Dimension S1 (mm) |
M4x0.7 |
Dimension d4 (mm) |
8.1 |
Length L (mm) |
24.5 |
Dimension M1 (mm) |
15 |
Ball diameter (mm) |
7.9379999999999997 |
Dimension L2 |
4 mm |
JIS Class |
JIS Class 2 |
Dimension D2 (mm) |
9.5 |
Dimension W |
8 mm |
