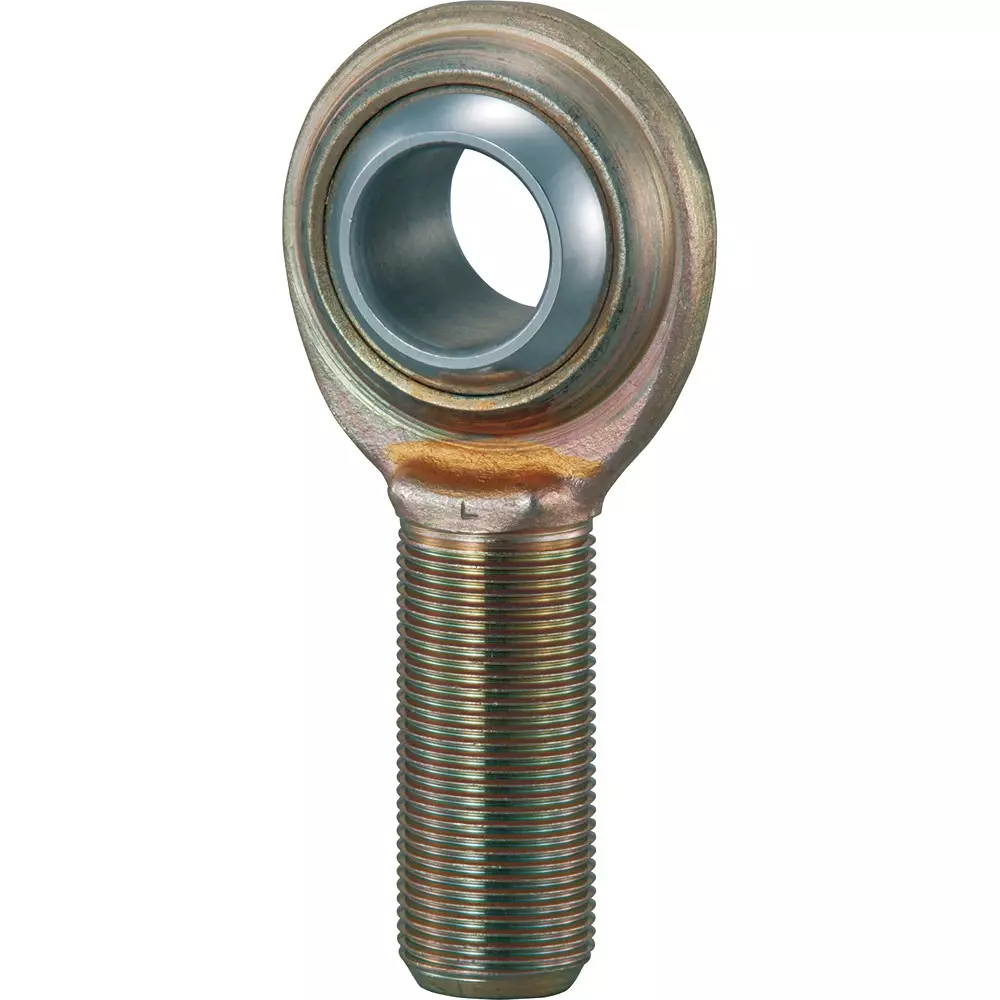

| Type of Product | Rod End |
| Model No | NOS22TL |
| Thread Type | Male Left-Hand Thread Type |
| Material | Holder: S35C (chromate treatment) Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating, but inner ring inner diameter is not treated) Bush: Self-lubricating synthetic resin |
Type of Product |
Rod End |
Model No |
NOS22TL |
Thread Type |
Male Left-Hand Thread Type |
Material |
Holder: S35C (chromate treatment) Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating, but inner ring inner diameter is not treated) Bush: Self-lubricating synthetic resin |
Country of Origin |
Japan |
Type |
Oil-Free |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
6335734 |
Mass (g) |
435 |
Dimension B (Φmm) |
20 |
Dimension L (mm) |
109 |
Dimension L1 |
84 mm |
Dimension L2 |
51 mm |
JIS Class |
JIS Class 2 |
Dimension S |
M22x1.5 mm |
RoHS Directive |
Correspondence |
Width B1 (mm) |
28 |
Dimension C |
0.7 mm |
Dimension D1 (mm) |
25.8 |
Dimension d |
22 mm |
