| Type | Rotary encoder |
| Ambient Humidity | During Use & Storage: 35 to 85% RH (No Condensation) |

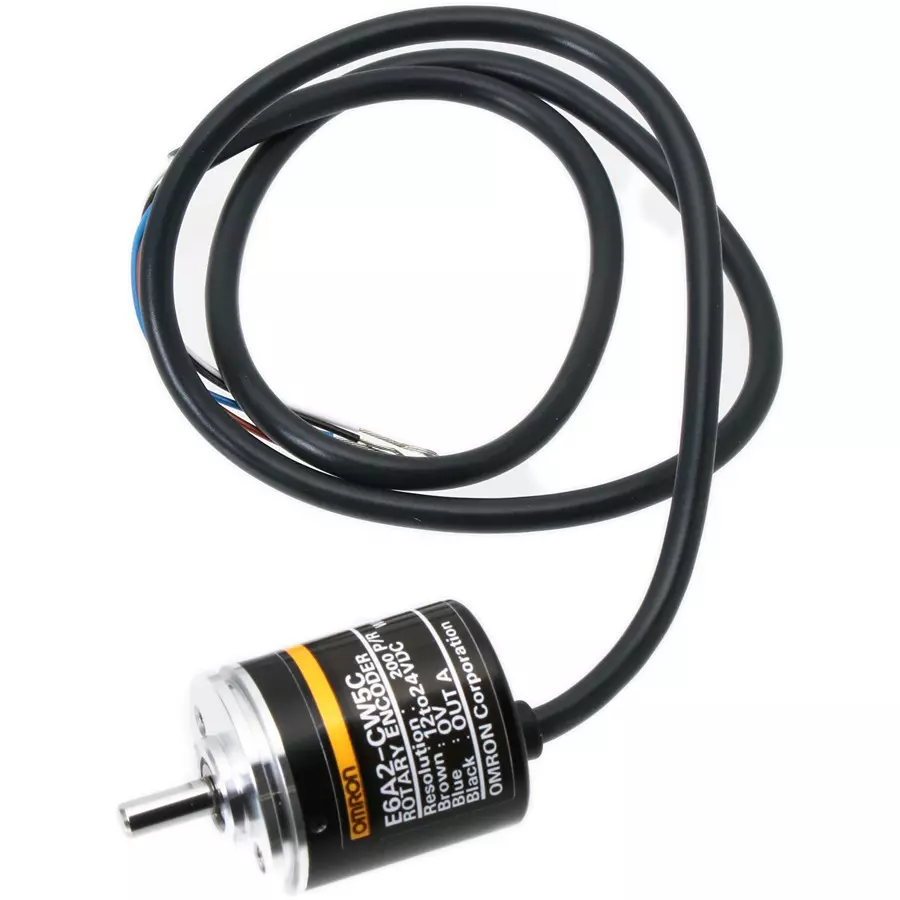

| Model No | E6A2-CW5C 200P/R 0.5M |
| Resolution | 200 Pulses/Rotation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Rotary encoder |
Ambient Humidity |
During Use & Storage: 35 to 85% RH (No Condensation) |
Model No |
E6A2-CW5C 200P/R 0.5M |
Resolution |
200 Pulses/Rotation |
Type of Product |
Rotary Encoder |
Output |
NPN Open Collector Output |
Current Consumption |
20 mA or less |
Insulation Resistance |
More than 20 MΩ (at 500 VDC) between live parts and case |
Vibration Resistance |
10-55 Hz Double amplitude 1 mm X, Y, Z each direction 2h |
Cable Length |
0.5 m |
Connection Type |
Cord drawer type |
Power Supply Voltage |
DC12V-10% -24 + 15% Ripple (pp) 5% or less |
Case Material |
Aluminum Alloy |
Output Shaft Allowable Thrust Load (N) |
5N |
Output Shaft Allowable Radial Load (N) |
10N |
Rise / Fall Time |
1.0μs or less (Cord Length 500mm, Control Output Voltage 5V, Load Resistance 1kΩ) |
Monotaro ID |
8586557 |
Output Capacity |
Applied voltage: DC30V or less Sink current: 30mA or less Residual voltage: 0.4V or less (when sink current is 30mA) |
Included Components |
Coupling, Hexagon Spanner |
Inertia Moment |
1×10ˉ⁷ kgm² or less |
Main Unit Material |
Metal Part: Aluminum |
Maximum Rotational Speed |
5000 minˉ¹ [rpm] |
Protection Class |
IEC Standard IP50 (There is no protection against water and oil) |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
