Ships within 19 days
Resolution
View
View
View
View
| Type | Rotary encoder |
| Ambient Humidity | During Use & Storage: 35 to 85% RH (No Condensation) |

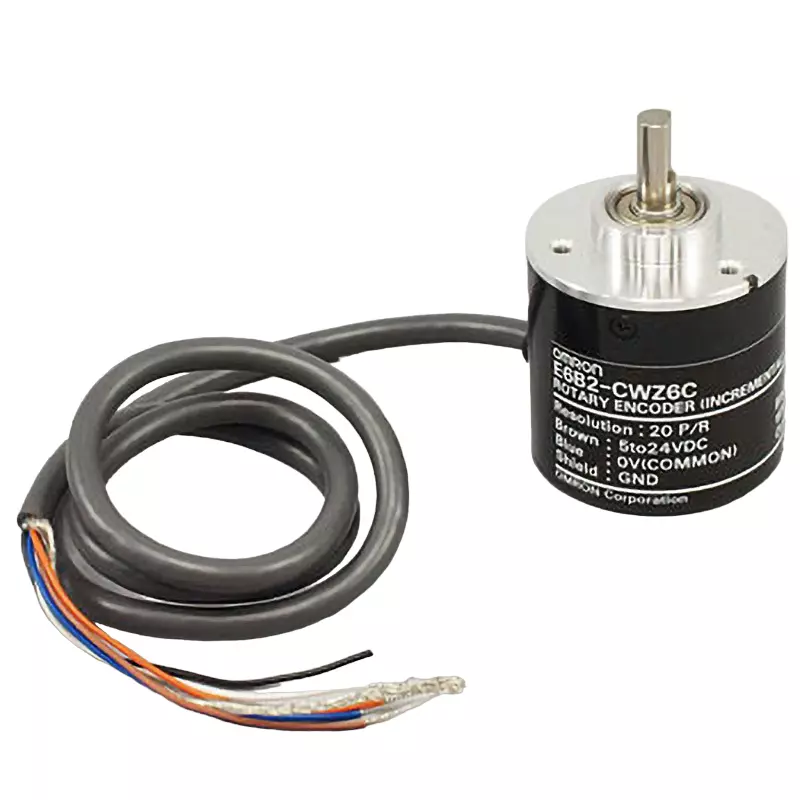

| Model No | E6B2-CWZ6C 20P/R 0.5M |
| Resolution | 20 P/R |
Type |
Rotary encoder |
Ambient Humidity |
During Use & Storage: 35 to 85% RH (No Condensation) |
Model No |
E6B2-CWZ6C 20P/R 0.5M |
Resolution |
20 P/R |
Type of Product |
Rotary Encoder |
Output |
Open Collector Output (NPN Output) |
Current Consumption |
80 mA or less-When the power is turned on, an inrush current of about 9A flows. (Time: about 0.3ms) |
Insulation Resistance |
More than 20 MΩ (at 500 VDC) between live parts and case |
Vibration Resistance |
10 to 500 Hz Double amplitude 2 mm or 150m / s <sup>2</sup> X, Y, Z direction 1 sweep 11min 3 sweep |
Cable Length |
0.5 m |
Connection Type |
Cord Pull-Out Type |
Power Supply Voltage |
DC5V-5% ～ 24 + 15% Ripple (pp) 5% or less |
Case Material |
ABS |
Cable Length (m) |
0.5 |
Protection Circuit |
Load Short-Circuit Protection, Power Supply Reverse Connection Protection |
Rise / Fall Time |
1μs or less (Control Output Voltage 5V, Load Resistance 1kΩ, Cord Length 2m) |
Monotaro ID |
8586672 |
Output Capacity |
Applied voltage: DC30V or less Sink current: 35mA or less Residual voltage: 0.4V or less (when sink current is 35mA) |
Import Country |
Direct Import from Japan |
Included Components |
Coupling, Hexagon Spanner |
Inertia Moment |
3×10ˉ⁷ kgm² or less |
Main Unit Material |
Aluminum |
Maximum Rotational Speed |
6000 minˉ¹ [rpm] |
Protection Class |
IEC Standard IP50 |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply Voltage (V) |
DC 5-5% to 24+15% Ripple (pp) 5% or less |
