Ships within 19 days
Resolution
View
View
View
View

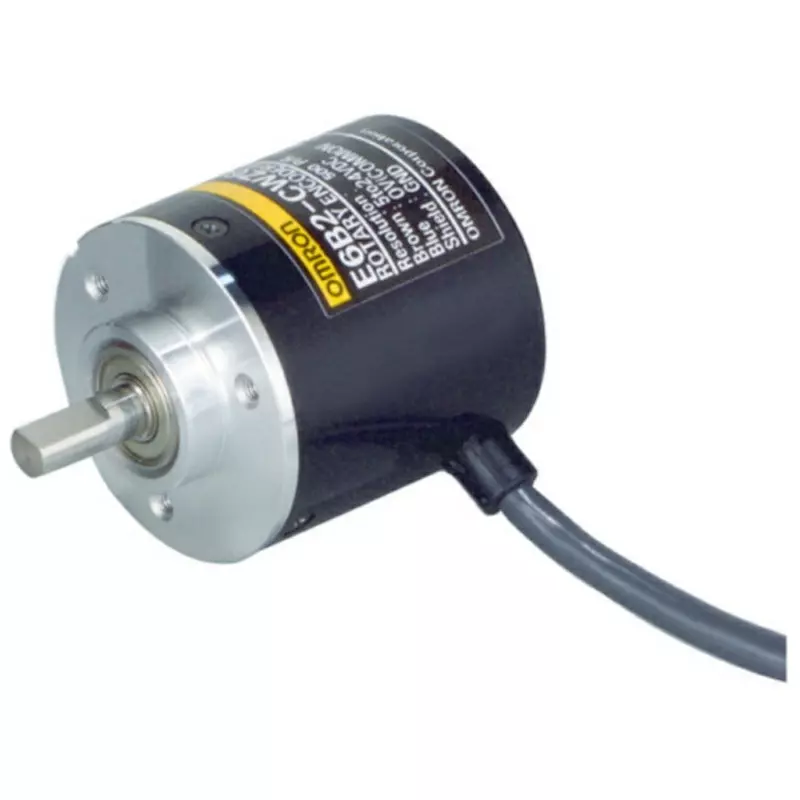

| Type | Rotary encoder |
| Model No | E6B2-CWZ6C-1024P/R-0.5M |
| Resolution | 1024 P/R |
| Control Output | NPN Open Collector |
Type |
Rotary encoder |
Model No |
E6B2-CWZ6C-1024P/R-0.5M |
Resolution |
1024 P/R |
Control Output |
NPN Open Collector |
Type of Product |
Rotary Encoder Incremental |
Output |
Npn Open Collector Output |
Insulation Resistance |
More than 20 (at 500 VDC) between live parts and case |
Connection Type |
Cord Pull-Out Type |
Case Material |
ABS |
Cable Length (m) |
0.5 |
Current Consumption (mA) |
0.6 W or Less (80 or Less) When the power is turned on, an inrush current of about 9A flows. (Time: about 0.3 ms) |
Monotaro ID |
46438113 |
Output Capacity |
Applied Voltage: Dc30V Or Less Sink Current: 35Ma Or Less Residual Voltage: 0.4V Or Less (When Sink Current Is 35Ma) |
Mass (g) |
Approx. 100 (Packed) |
Import Country |
Direct Import from Japan |
Included Components |
Coupling, Hexagon Spanner, Instruction Manual |
Main Unit Material |
Aluminum |
Protection Class |
IEC standard IP50 |
Series |
E6B2 |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply Voltage (V) |
DC 5-5% to 24+15% Ripple (pp) 5% or less |
Maximum Rotation Speed |
6000 |
Height (mm) |
59 |
Classification |
Incremental Shaft Type |
