Ships within 19 days
Model No
View
View
View
View
| Type | Incremental Type |

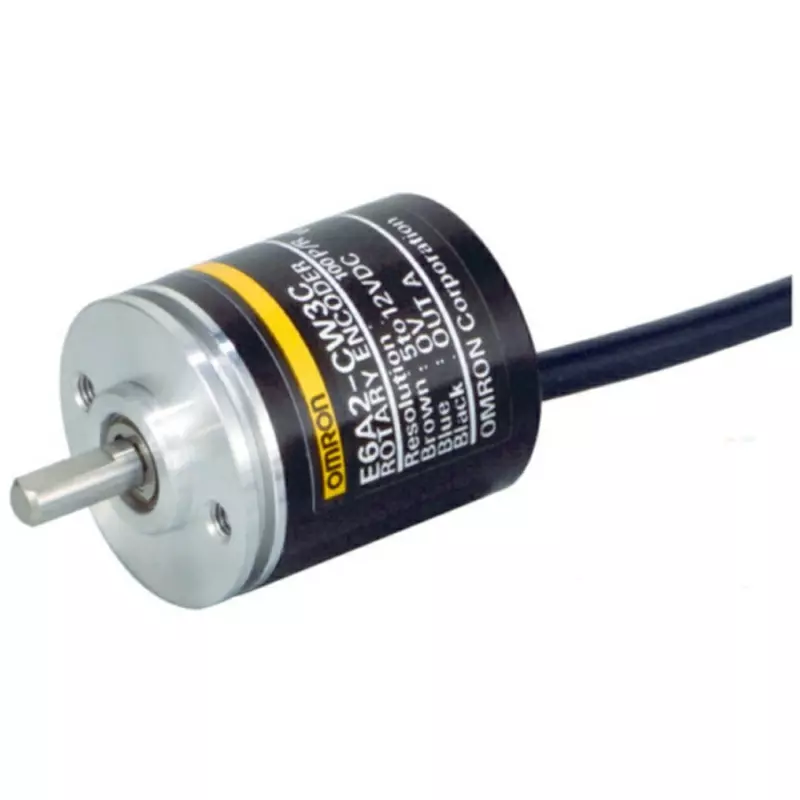

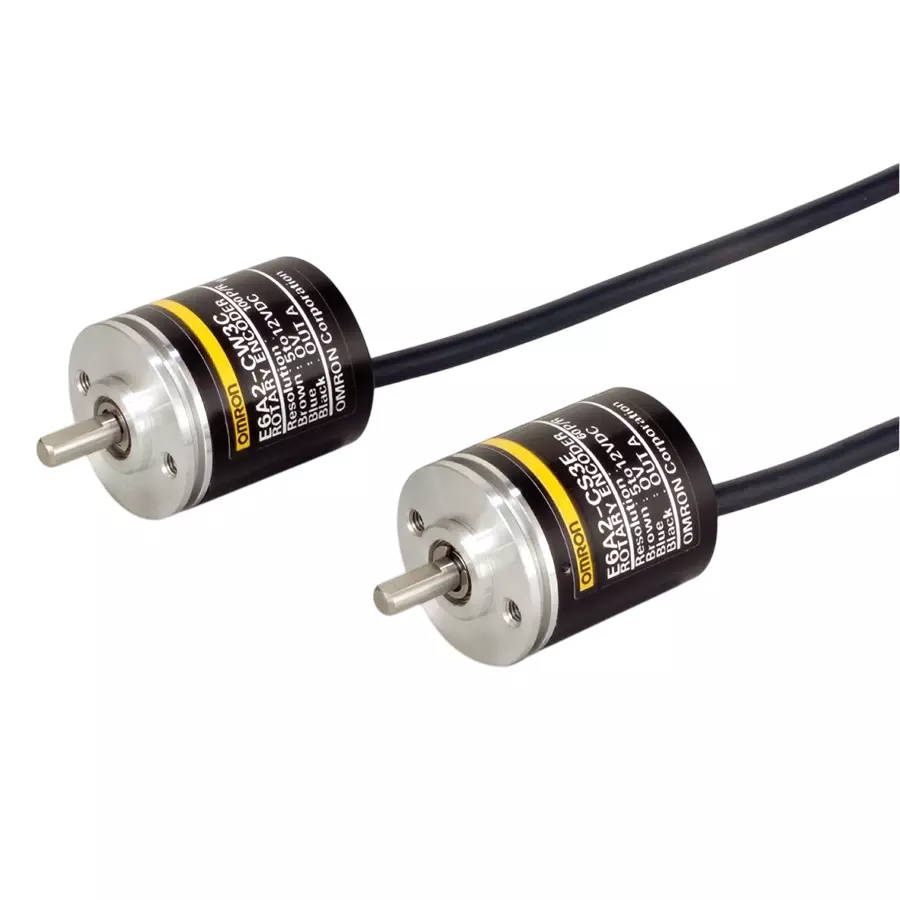

| Model No | E6A2-CWZ3E-360P/R-0.5M |
| Resolution | 360P/R |
| Control Output | Voltage output |
Type |
Incremental Type |
Model No |
E6A2-CWZ3E-360P/R-0.5M |
Resolution |
360P/R |
Control Output |
Voltage output |
Type of Product |
Rotary Encoder |
Output |
Voltage output |
Insulation Resistance |
More than 20 (at 500 VDC) between live parts and case |
Connection Type |
Cord Pull-Out Type (Cord Length: 0.5 M) |
Power Supply Voltage |
DC5-5% to 12 + 10% Ripple (pp) 5% or less |
Case Material |
Aluminum alloy |
Cable Length (m) |
0.5 m |
Rise / Fall Time |
1μs or less (cord length 500 mm, sink current 10mA) |
Current Consumption (mA) |
less than 50 |
Ambient Humidity (% RH) |
During use and storage: 35 to 85 (no condensation) |
Monotaro ID |
46437501 |
Output Capacity |
Output Resistance: 2Kω Output Current: 20Ma Or Less Residual Voltage: 0.4V Or Less (At 20Ma Output Current) |
Mass (g) |
Approx. 35 (packed) |
Import Country |
Direct Import from Japan |
Included Components |
Coupling, servo manout mounting bracket, hex wrench, instruction manual |
Inertia Moment |
1x10 Kgm²-7 Kgm² or less |
Main Unit Material |
Metal part: Aluminum |
Protection Class |
IEC standard IP50 , There is no protection against water and oil. |
Series |
E6A2-C Series |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply Voltage (V) |
DC 5-5% to 12+10% Ripple (pp) 5% or less |
Maximum Rotation Speed (min⁻¹[rpm]) |
5000 |
Category |
Rotary Encoder |
Protection |
Incremental shaft type |
