Ships within 19 days
Model No
View
View
View
View
| Type | Incremental Type |

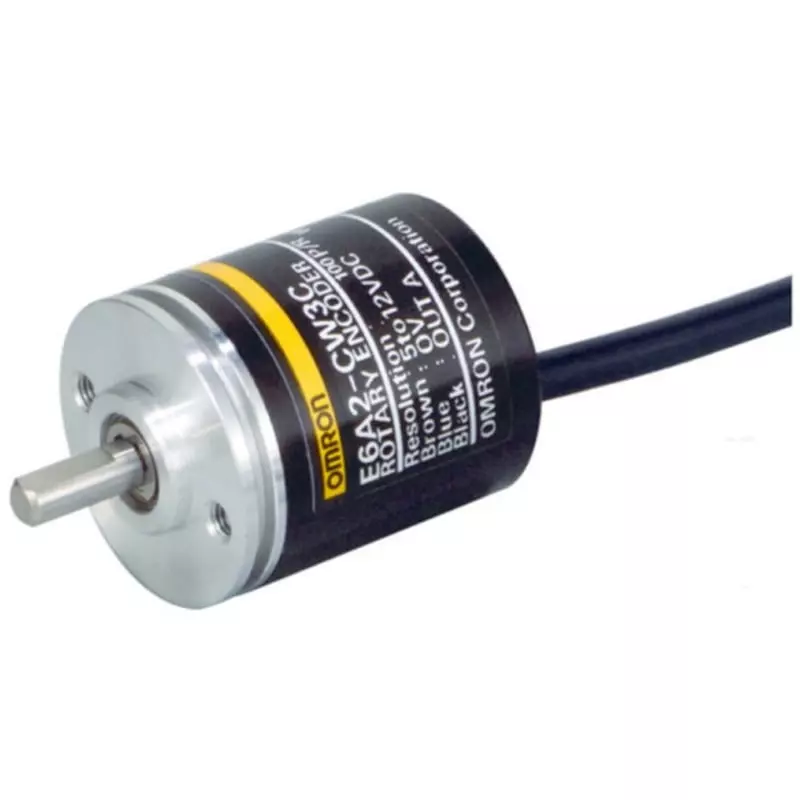

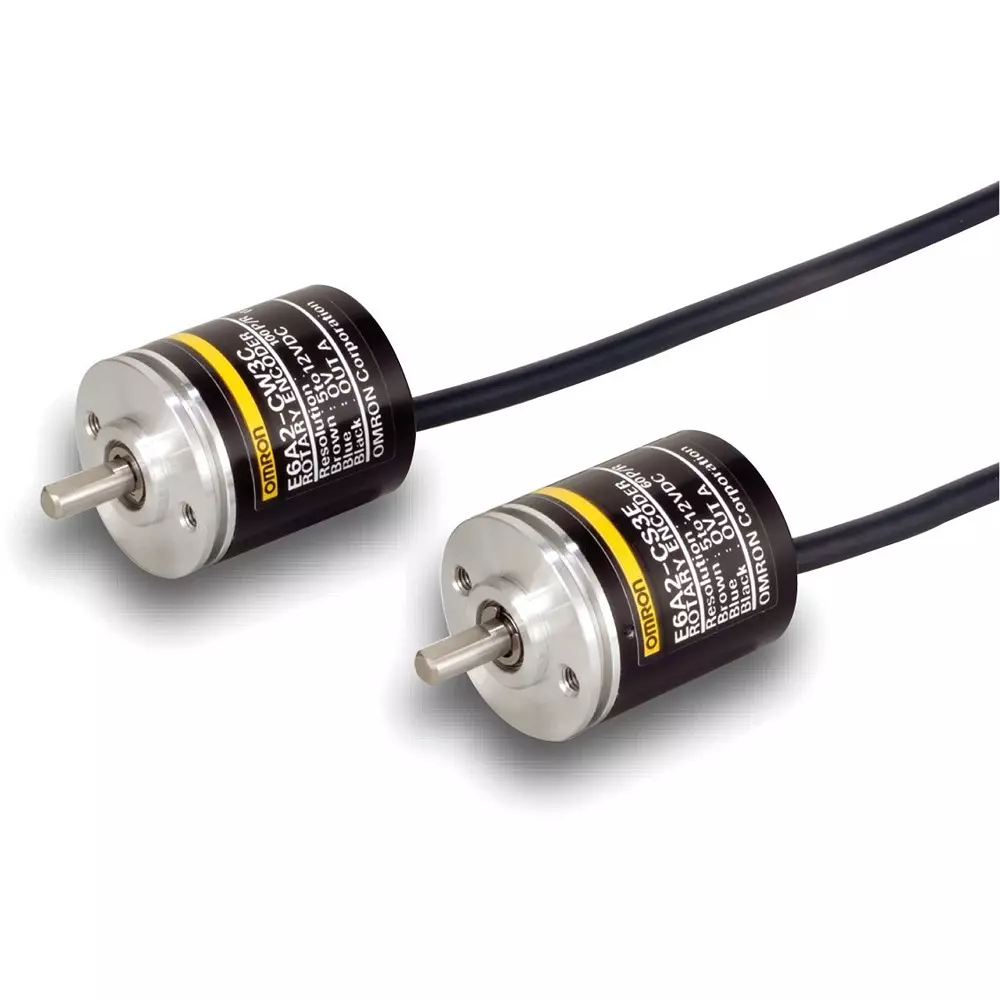

| Model No | E6A2-CW3E-500P/R-0.5M |
| Resolution | 500 P/R |
| Type of Product | Rotary Encoder |
Type |
Incremental Type |
Model No |
E6A2-CW3E-500P/R-0.5M |
Resolution |
500 P/R |
Type of Product |
Rotary Encoder |
Output |
Voltage output |
Connection Type |
Cord drawer type |
Power Supply Voltage |
DC 5-5 V % to 12 + 10% Ripple (pp) 5% or less |
Case Material |
Aluminum alloy |
Cable Length (m) |
0.5 m |
Current Consumption (mA) |
30 or less |
Ambient Humidity (% RH) |
During use and storage: 35 to 85 (no condensation) |
Monotaro ID |
46437404 |
Output Capacity |
Output resistance: 2kΩ Output current: 20mA or less Residual voltage: 0.4V or less (at 20mA output current) |
Mass (g) |
Approx. 35 (packed) |
Import Country |
Direct Import from Japan |
Included Components |
Coupling, hexagonal spanner, instruction manual |
Main Unit Material |
Metal part: Aluminum |
Protection Class |
IEC standard IP50 , There is no protection against water and oil. |
Series |
E6A2-C Series |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply Voltage (V) |
DC 5-5% to 12+10% Ripple (pp) 5% or less |
Classification |
Incremental shaft type |
Maximum Rotation Speed (min⁻¹[rpm]) |
5000 |
Operation Ambient Temperature (°C) |
When used: -10 to 55, Storage: -25 to 80 (but do not freeze) |
Insulation Resistance (MOhm) |
Between live parts and case: 20 or more (at 500 V DC) |
