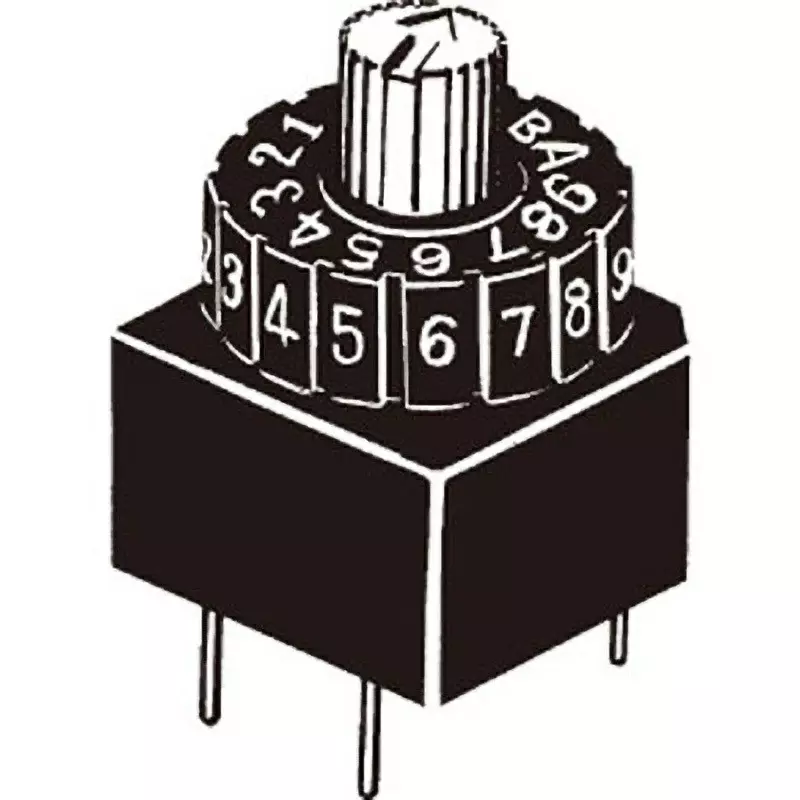

| Type of Product | Sealed Rotary Dip Switch |
| Monotaro ID | 39026337 |
| Color | (Rotor) White, (Wheel) Black |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Sealed Rotary Dip Switch |
Monotaro ID |
39026337 |
Color |
(Rotor) White, (Wheel) Black |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Output Code |
Real code |
Electrical Durability |
More than 2000 steps |
Withstand Voltage |
Between terminals: 250 VAC for 1 min |
Position |
16 |
Type |
Wheel Type |
Part No |
64-3335-38 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
A6A-16RW |
Operating Humidity Range |
45 to 85% RH or less (at +5 to + 35 ° C) |
Vibration Resistance (Malfunction) |
10-55Hz double amplitude 1.5mm |
Shock Resistance (Malfunction) |
300 or more |
Contact Resistance (ohm) |
200 or less (initial value) |
Mass (g) |
About 1.0 |
Electrical ratings |
DC28V 0.1A, DC5V 1mA (minimum current) |
Operating Temperature Range |
-10 to +70℃ 60% RH or less |
Insulation Resistance (MOhm) |
10 or more (at 250 VDC) |
Operating Torque |
1.18 to 2.45x¹⁰⁻² N.m |
