Ships within 19 days
Position
Model No
View
View
View
View

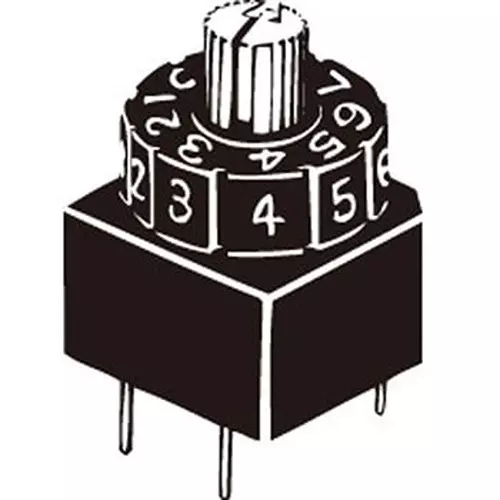

| Type of Product | Rotary DIP Switch |
| Monotaro ID | 46446014 |
| Color | (Rotor) White, (Wheel) Black |
| Model No | A6A-10CW |
Type of Product |
Rotary DIP Switch |
Monotaro ID |
46446014 |
Color |
(Rotor) White, (Wheel) Black |
Model No |
A6A-10CW |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Output Code |
Complementary code |
Electrical Durability |
More than 2000 steps |
Withstand Voltage |
Between terminals: 250 VAC for 1 min |
Position |
10 |
Type |
Wheel type |
Part No |
64-3335-26 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operating Humidity Range |
45 to 85% RH or less (at +5 to + 35 ° C) |
Vibration Resistance (Malfunction) |
10-55Hz double amplitude 1.5 mm |
Shock Resistance (Malfunction) |
300 m/s² or more |
Contact Resistance (ohm) |
200 or less (initial value) |
Mass (g) |
About 1.0 |
Electrical ratings |
DC28V 0.1A, DC5V 1mA (minimum current) |
Operating Temperature Range |
-10 to +70℃ 60% RH or less (with no icing or condensation) |
Insulation Resistance (MOhm) |
10 mohm or more (at 250 V DC) |
Operating Torque |
1.18 to 2.45x10² Nm |
