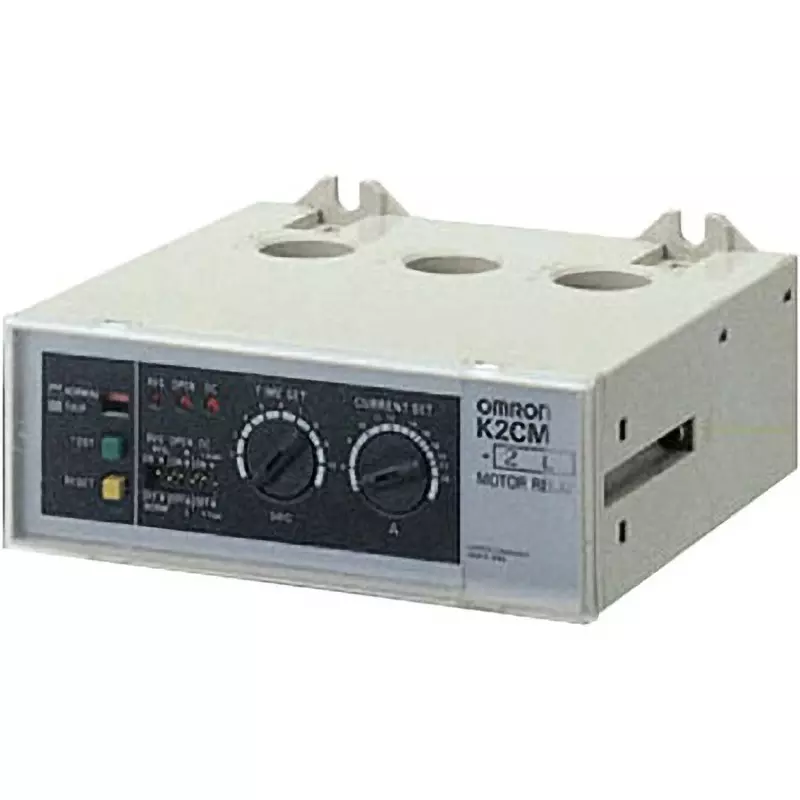

| Type of Product | Motor Relay |
| Model No | K2CM-Q2LA |
| Contact Configuration | 1A1B |
| Mounting | Surface mounting integrated type |
Type of Product |
Motor Relay |
Model No |
K2CM-Q2LA |
Contact Configuration |
1A1B |
Mounting |
Surface mounting integrated type |
Mass (g) |
780~800 |
Withstand Voltage |
Withstand voltage AC 2500 V (between live part terminals and mounting panel, between live part terminals) AC 1000 V (between contact poles) |
Monotaro ID |
39075644 |
Range |
(Current) 8 to 26A |
Import Country |
Direct Import from Japan |
Case Color |
Munsell 5Y7/1 |
Frequency Tolerance |
95 to 105% of rated frequency |
Series |
K2CM Series |
Rated Working Voltage |
AC 200/220 V, 400/440 V |
Detection Method |
(Reverse phase detection) Current reverse phase detection |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Insulation Voltage (V) |
500 AC |
Rated Frequency (Hz) |
50/60 Hz |
Overload Capacity |
Main circuit: 20 times the main circuit current setting, 2 seconds, 2 times, 1 minute intervals | Control power circuit: 1.15 times the rated operating voltage, 3 hours, 1 time |
