Ships within 19 days
Model No
View
View
View
View
| Return Function | Automatic |
| Withstand Voltage | Between homopolar terminals, between lamp terminals: 1000 VAC 50/60 Hz for 1 min / between different polarity terminals, between each terminal and ground: 2000 VAC 50/60 Hz for 1 min |
| Protection Class | IP65 |
| Monotaro ID | 38978852 |
Return Function |
Automatic |
Withstand Voltage |
Between homopolar terminals, between lamp terminals: 1000 VAC 50/60 Hz for 1 min / between different polarity terminals, between each terminal and ground: 2000 VAC 50/60 Hz for 1 min |
Protection Class |
IP65 |
Monotaro ID |
38978852 |
Storage Temperature |
-25 to 65℃ |
Type of Product |

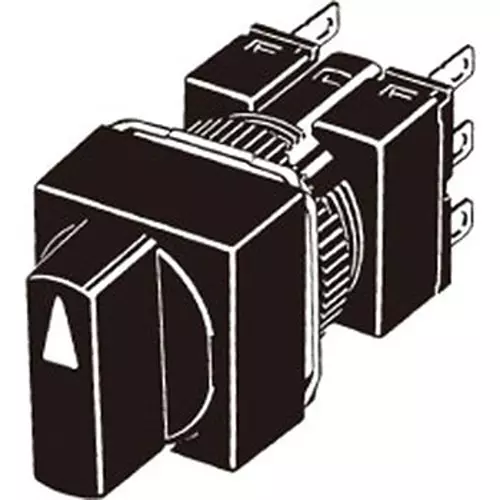

Knob-Type Selector Switch (Round Type) |
Type |
Operation unit |
Model No |
A165S-A3A |
Ambient Humidity to Use |
35 to 85%RH |
Series |
A165S Series |
Light Source |
Nonilluminated |
Shock Resistance |
Up to 500 m/s² |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Number of Notches |
3 |
Vibration Resistance (Malfunction) |
10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
Type of Illumination |
Non-illuminated |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
A165S-A3A |
Operation Ambient Temperature (°C) |
-10 to 55 (no freezing or condensation) |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Safety Standard |
UL(File No. E41515)、CSA(File No. LR45258) |
