Ships within 19 days
Model No
View
View
View
View
| Protection Class | IEC standard IP67 |
| Type of Product | Standard Type Proximity Sensor |

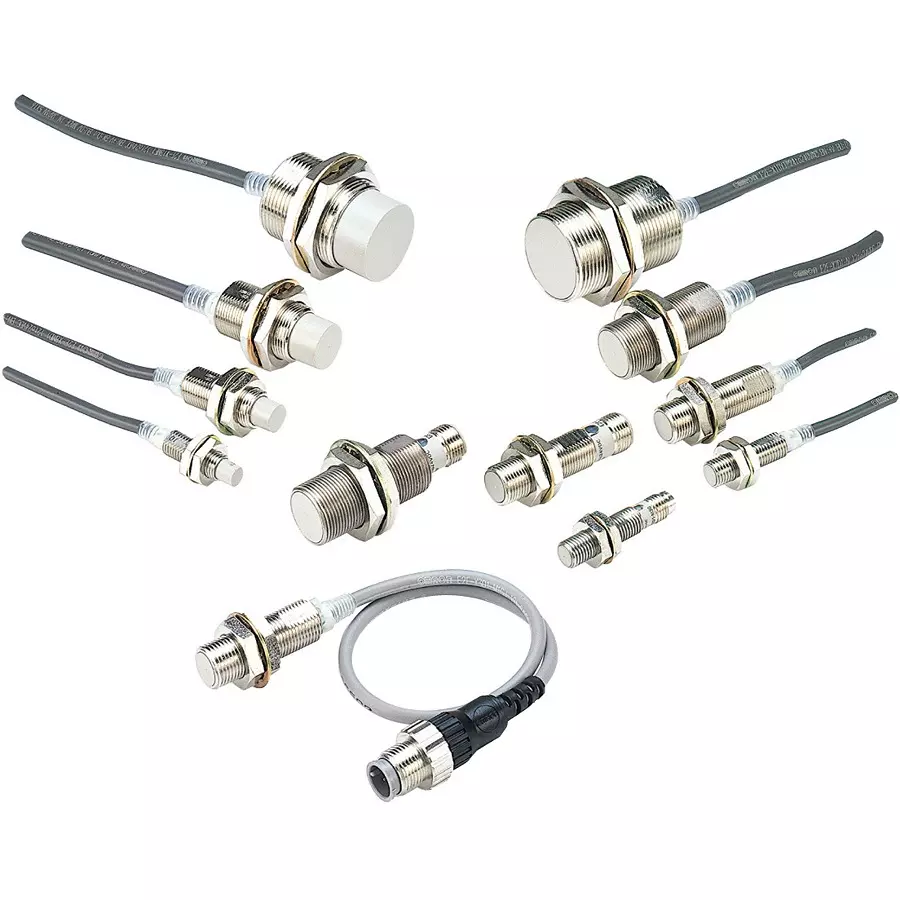

| Model No | E2E-X14C118 2M |
| Weight | Approx. 180 g (Packed) |
Protection Class |
IEC standard IP67 |
Type of Product |
Standard Type Proximity Sensor |
Model No |
E2E-X14C118 2M |
Weight |
Approx. 180 g (Packed) |
Size |
M18 |
Country of Origin |
Japan |
Detection Distance |
14 mm |
Head Shape |
Screw |
Monotaro ID |
63695319 |
Detection Target |
Metal |
Case Material |
Brass Nickel Plating |
Protection Circuit |
Load Short Circuit Protection, Output Reverse Connection Protection, Power Supply Reverse Connection Protection, Surge Absorption |
Ambient Humidity |
Operating & Storage: 35 to 95% RH (No Condensation) |
Included Components |
Instruction Manual, Tightening Nut, Washer with Teeth |
Influence of Voltage |
Within rated voltage ± 15% range, within rated voltage ± 1% of sensing distance |
Standard sensing Object |
Iron: 42 × 42 × 1 mm |
Connection Type |
Cord drawer type |
Insulation Resistance |
50 MΩ or more (at 500 VDC) between live parts and case |
Setting Distance (mm) |
0～10.6 mm |
Cord |
Standard PVC Code |
Power Supply Voltage |
DC10-30 V (including 10% ripple (pp)) |
Vibration Resistance |
10-55 Hz, multiple width 1.5 mm, X, Y, Z directions 2h |
Current Consumption |
16 mA or less |
Control Output |
Open/Close Capacity: 50 mA or less (DC10-30V Class2) |
Residual voltage (V) |
2 V or Less (At Load Current 200 mA & Cord Length 2 m) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Import Country |
Direct Import from Japan |
Detection |
Magnetic Metal Presence Detection |
Cord Material |
Oil-Resistant PVC |
