| Protection Class | IEC Standard IP67 |

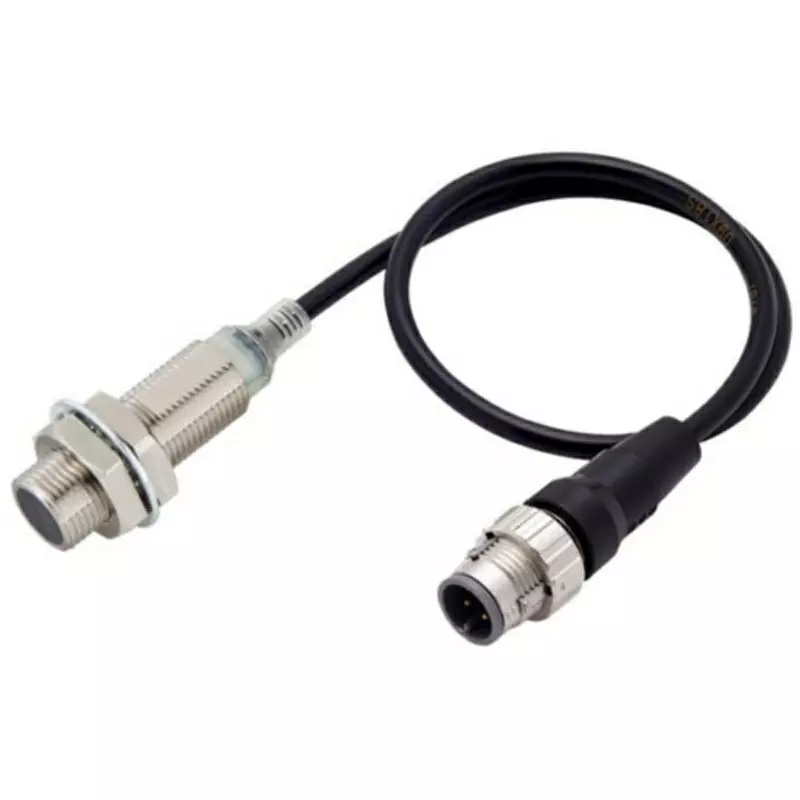

| Type of Product | Proximity Sensor |
| Model No | E2E-X3D1-M1J-T 1M |
| Size | M12 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Protection Class |
IEC Standard IP67 |
Type of Product |
Proximity Sensor |
Model No |
E2E-X3D1-M1J-T 1M |
Size |
M12 |
Country of Origin |
CHINA |
Type |
Shield |
Detection Distance |
3 mm ±10% |
Monotaro ID |
39045973 |
Case Material |
Brass Nickel Plating |
Included Components |
Instruction Manual, Tightening Nut, Washer With Teeth |
Connection Type |
M12 Standard Connector Relay Type (Old Pin Wiring) |
Power Supply Voltage |
DC 12-24 V Ripple (PP) 10% or Less (DC 10-30 V), Class 2 |
Output |
DC 2-Wire Non-Polar |
Control Output |
Switching Capacity: 3 V ~ 100 mA Residual Voltage: 5 V or Less (Load Current: 100 mA, Cord Length: 2 m) |
Withstand Voltage |
Between Live Parts and Case: AC 1000 (50/60 Hz) |
Standard Sensing Object (mm) |
Iron 12x12x1 mm |
Detection Distance (mm) |
3±10% |
Material |
Tightening Nut: Brass Nickel Plated Toothed Washer: Iron Galvanized |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Shape |
Cylindrical (with Screws) |
Body Size |
Standard |
Cable Length (m) |
1 m |
Mass (g) |
Approx. 40 g (Packed) |
