Ships within 19 days
Model No
View
View
View
View
| Protection Class | IEC standard IP67 |
| Cable Length | 5 m |

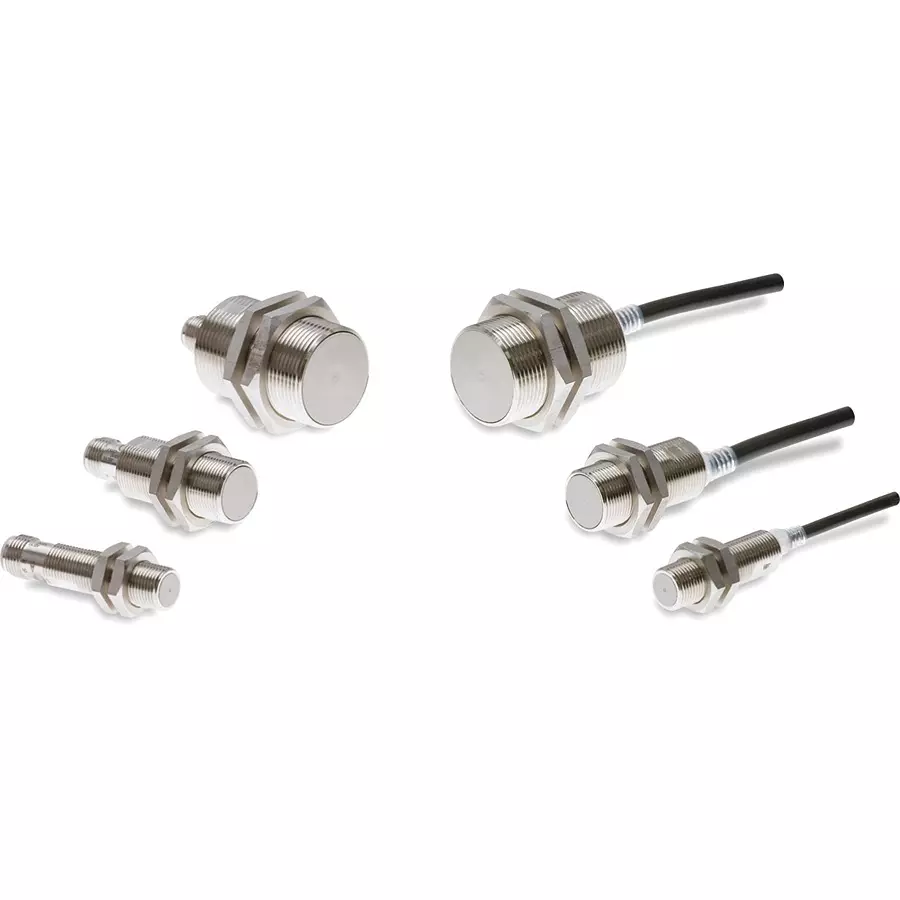

| Type of Product | Proximity Sensor |
| Model No | E2EH-X3C1-5M |
Protection Class |
IEC standard IP67 |
Cable Length |
5 m |
Type of Product |
Proximity Sensor |
Model No |
E2EH-X3C1-5M |
Output Type |
NPN |
Size |
M12 |
Country of Origin |
China |
Type |
Cylindrical (with screw) |
Detection Distance |
3 mm |
Head Shape |
Screw |
Monotaro ID |
46507167 |
Sensor Shape |
Screw Type |
Switching Capacity |
100 mA max. However, at +100 to + 120 ° C, max. 50 mA |
Case Material |
Stainless Steel (SUS316L) |
Protection Circuit |
Power Supply Reverse Connection Protection Surge Absorption, Load Short Circuit Protection, Output Reverse Connection Protection |
Ambient Humidity |
Operating & Storage: 35 to 95% RH Each (No Condensation) |
Included Components |
Instruction Manual |
Influence of Voltage |
Within ± 10% of sensing distance at rated power supply voltage within ± 15% of rated power supply voltage |
Standard sensing Object |
Iron: 12 × 12 × 1 mm |
Connection Type |
Cord drawer type |
Insulation Resistance |
50 MΩ or more (at 500 VDC) between live parts and case |
Setting Distance (mm) |
0～2.4 mm |
Power Supply Voltage |
DC12-24 Ripple (pp) 10% or less |
Current Consumption |
less than 10 mA |
Cable Material |
Heat-Resistant PVC |
Detection Distance (mm) |
3 mm |
Residual voltage (V) |
2 V or Less (Load Current 100 mA, Cord Length 2 m) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operating Voltage Range (V) |
DC 10-32°C (however, a maximum of 24°C if the temperature is above 100°C) |
Import Country |
Direct Import from Japan |
