Ships within 19 days
Model No
View
View
View
View
| Protection Class | IEC Standard IP67 |

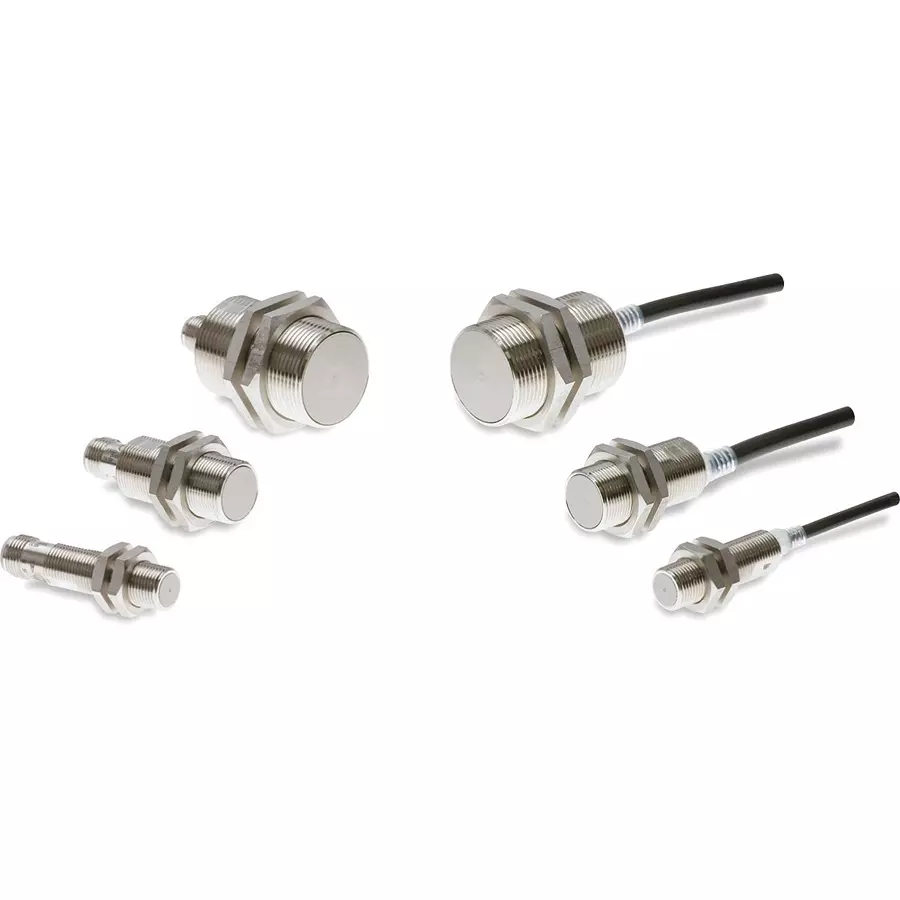

| Type of Product | Proximity Sensor |
| Model No | E2EH-X3D1-T-5M |
| Size | M12 |
Protection Class |
IEC Standard IP67 |
Type of Product |
Proximity Sensor |
Model No |
E2EH-X3D1-T-5M |
Size |
M12 |
Country of Origin |
China |
Type |
Cylindrical (with screw) |
Head Shape |
Screw |
Monotaro ID |
46507221 |
Sensor Shape |
Screw Type |
Case Material |
Stainless Steel (Sus316L) |
Included Components |
Instruction manual |
Connection Type |
Cord Drawer Type |
Insulation Resistance |
50 mΩ Or more (At 500 VDC) Between Live Parts and Case |
Power Supply Voltage |
DC12-24 Ripple (pp) 10% or less |
Control Output |
Switching Capacity: 3 To 100 mA (+100 To + 110 ° C, 3 To 50 mA) Residual Voltage: 5 V Or Less (Load Current 100 Ma, Cord Length 2 M) |
Cable Material |
(Code) Heat-Resistant PVC |
Standard Sensing Object (mm) |
Iron 12 × 12 × 1 |
Detection Distance (mm) |
3 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Shape |
Shield M12 |
Cable Length (m) |
5 |
Current Consumption (mA) |
Less Than 10 |
Ambient Humidity (% RH) |
Operating And Storage: 35 To 95 Each (No Condensation) |
Operating Voltage Range (V) |
DC 10-32°C (however, a maximum of 24°C if the temperature is above 100°C) |
Import Country |
Direct Import from Japan |
Power Supply Voltage (V) |
DC 12 To 24 Ripple (Pp) 10% Or Less |
