| Product Sub Type | PB |
| D.B.Per CPLG. 6.3 | 2886 |
| Size | TO-18 |
| Speed | Max: 1500 RPM |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Product Sub Type |
PB |
D.B.Per CPLG. 6.3 |
2886 |
Size |
TO-18 |
Speed |
Max: 1500 RPM |
KW At 100 RPM |
65.7 kW |
Torque (Nm) |
6270 Nm |
Weight (Kg) |
133.3 Kg |
Features |
• Torsionally soft coupling • Protects against heavy shock due to sudden change in load • Absorbs vibrations & impact loads • Permits higher misalignments than any other coupling • Simple in construction • No lubrication needed • Less down time for alignment or replacement of tyre • Low inventory by utilising same coupling for different shaft sizes with the help of taper bushes • Permits angular, axial, parallel or combination of above misalignments • All metal parts are coated with anti-corrosive agents • Can be modified as per customer’s specific requirement |
Type of Product |

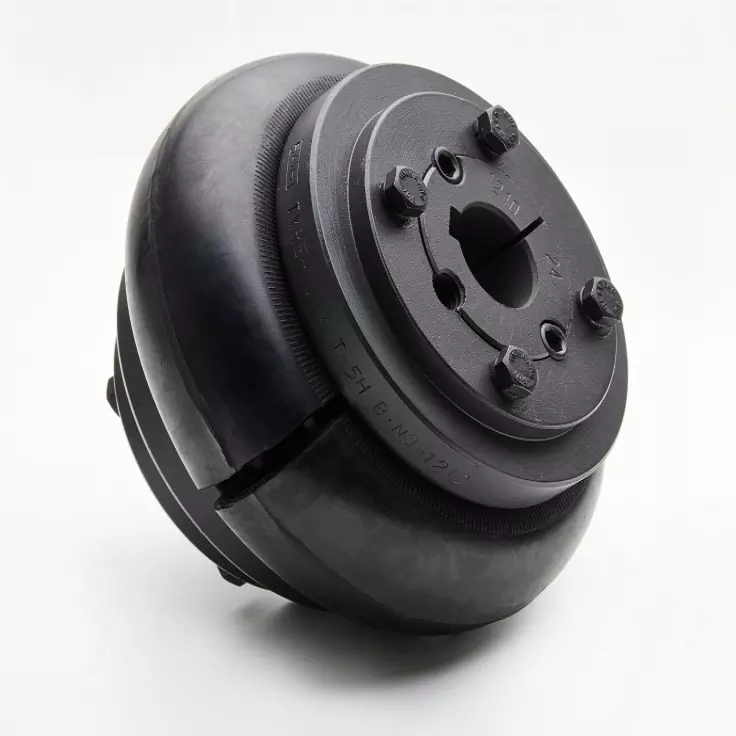

Tyre-Flex Coupling |
Application |
Power Transmission In Rotating Machinery |
Torsional Stiffness |
1371 Nm/Deg. |
Gap |
46 mm |
Total Length |
278 mm |
Coupling Size |
TO-18 |
Adapter Diameter (mm) |
220 mm |
Length Thru Bore |
116 mm |
Moment of Inertia |
2.1525 Kg-mSq. |
End Float |
6 mm |
Parallel Misalignment |
4.8 mm |
Tyre Diameter |
470 mm |
Bore |
PB:70, Max:150 mm |
Coupling Type |
Tyre-Flex Coupling Type: B |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Global bearing & Mill stores |
Suitable For |
Pumps, Compressors, Blowers & Fans, Mixers and Agitators, Conveyors and General industrial machinery |
