| Product Sub Type | PB |
| Size | TO-25 |
| Speed | Max: 1000 RPM |
| KW At 100 RPM | 154 kW |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Product Sub Type |
PB |
Size |
TO-25 |
Speed |
Max: 1000 RPM |
KW At 100 RPM |
154 kW |
Torque (Nm) |
14675 Nm |
Weight (Kg) |
281.1 Kg |
Features |
• Torsionally soft coupling • Protects against heavy shock due to sudden change in load • Absorbs vibrations & impact loads • Permits higher misalignments than any other coupling • Simple in construction • No lubrication needed • Less down time for alignment or replacement of tyre • Low inventory by utilising same coupling for different shaft sizes with the help of taper bushes • Permits angular, axial, parallel or combination of above misalignments • All metal parts are coated with anti-corrosive agents • Can be modified as per customer’s specific requirement |
Type of Product |

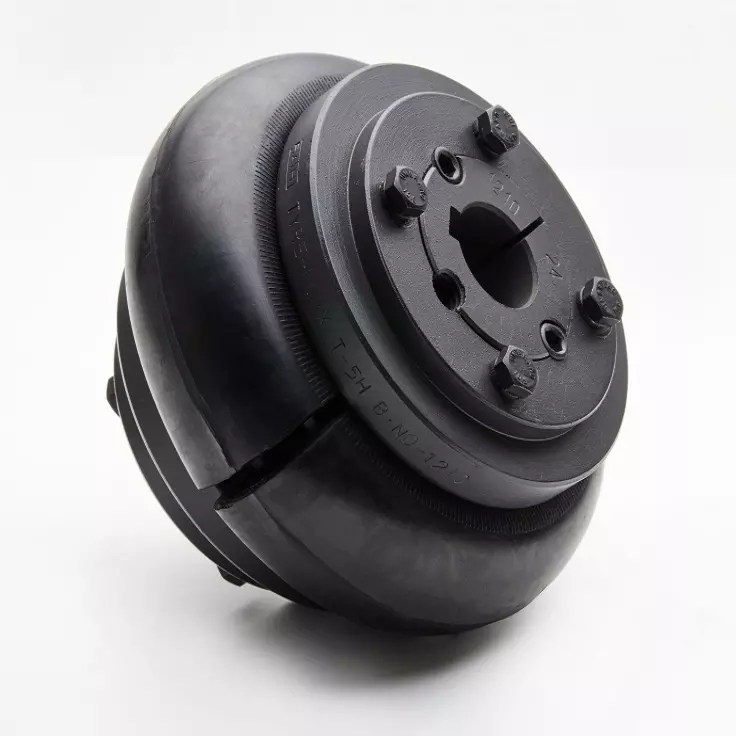

Tyre-Flex Coupling |
Application |
Power Transmission In Rotating Machinery |
Torsional Stiffness |
3562 Nm/Deg. |
Gap |
60 mm |
Total Length |
324 mm |
Coupling Size |
TO-25 |
Adapter Diameter (mm) |
275 mm |
Length Thru Bore |
132 mm |
Moment of Inertia |
8.129 Kg-mSq. |
End Float |
8.2 mm |
Parallel Misalignment |
6.6 mm |
Tyre Diameter |
628 mm |
Bore |
PB:85, Max:190 mm |
Coupling Type |
Tyre-Flex Coupling Type: B |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Global bearing & Mill stores |
Suitable For |
Pumps, Compressors, Blowers & Fans, Mixers and Agitators, Conveyors and General industrial machinery |
