Ships within 5 days
Spacer Length
Coupling Size
View
View
View
View
| Product Sub Type | SWQ |
| FB KW Per Coupling H7 JS9 | 2280 |
| D.B.Per CPLG. 6.3 | 1624 |
| Hub Type | SWQ Type |
Product Sub Type |
SWQ |
FB KW Per Coupling H7 JS9 |
2280 |
D.B.Per CPLG. 6.3 |
1624 |
Hub Type |
SWQ Type |
Size |
SWQ-350 |
KW At 100 RPM |
45.00 kW |
Maximum Bore (mm) |
125 mm |
Torque (Nm) |
4308 Nm |
Features |

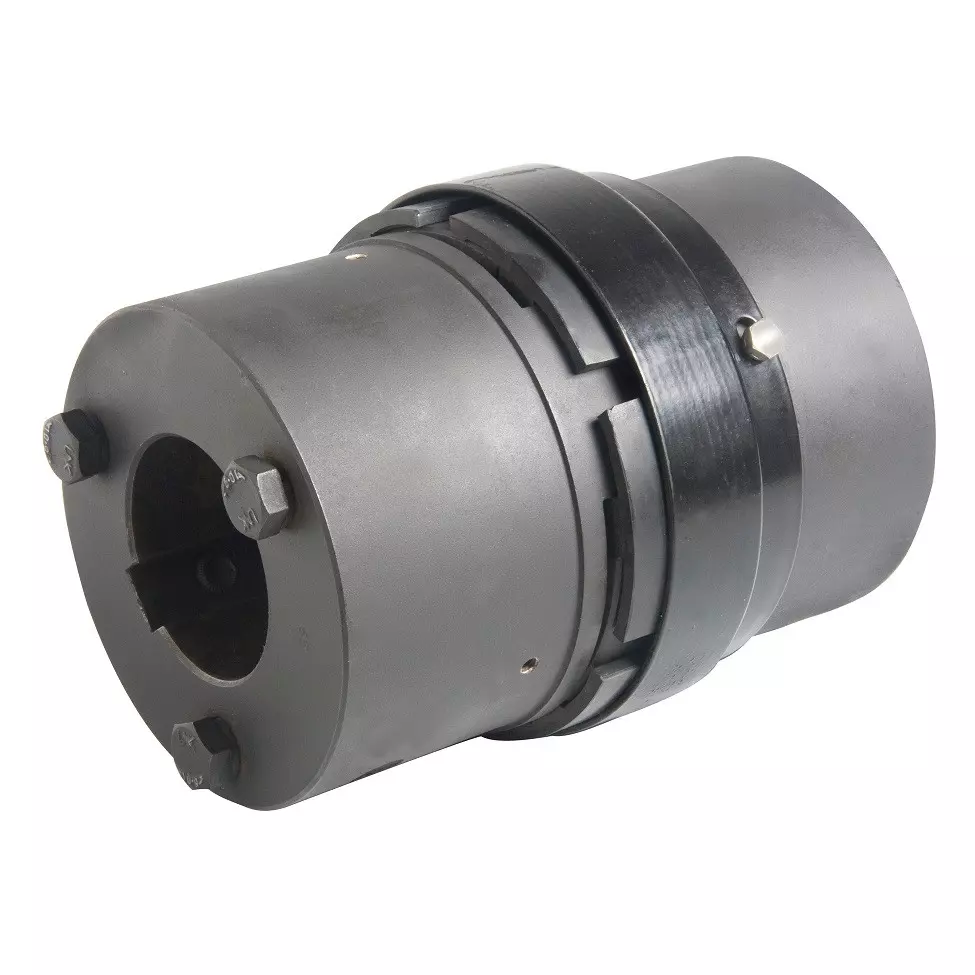

• Spacer type coupling using snapwrap/T-cushions as flexible elements. • Individual replacement of T cushion reduces replacement cost. • Used where rapid disconnection without disturbing the drive or driven unit is required. |
Type of Product |
Jaw Flex Coupling |
Application |
Power Transmission In Rotating Machinery |
Spacer Length |
140 mm |
Coupling Size |
SWQ-350 |
Approx. Weight (Kg) |
101.50 Kg |
Adapter Diameter (mm) |
200mm |
Length Thru Bore |
90mm |
Minimum Bolt Clearance |
85mm |
Bore |
125 mm |
Coupling Type |
SWQ Type Jaw Flex Coupling |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Global bearing & Mill stores |
Suitable For |
Pumps, Compressors, Blowers & Fans, Mixers and Agitators, Conveyors and General industrial machinery |
