SENSATA/CRYDOM Solid State Relay CN Series 2 A Load PCB Mount 280 V AC 30 DC Control, CN240A24

Ships within 15 days

SENSATA/CRYDOM Solid State Relay CN Series 2 A Load PCB Mount 280 V AC 30 DC Control, CN240A24

SENSATA/CRYDOM Solid State Relay CN Series 2 A Load PCB Mount 280 V AC 30 DC Control, CN240A24

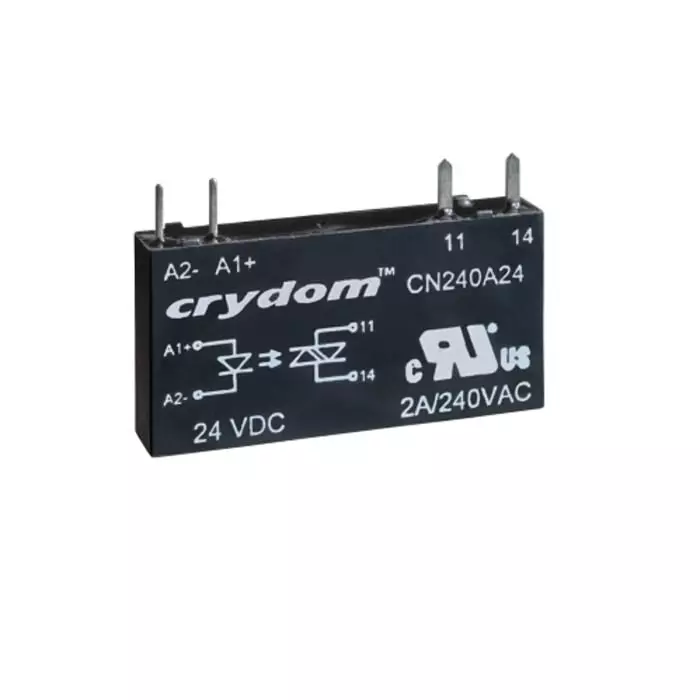

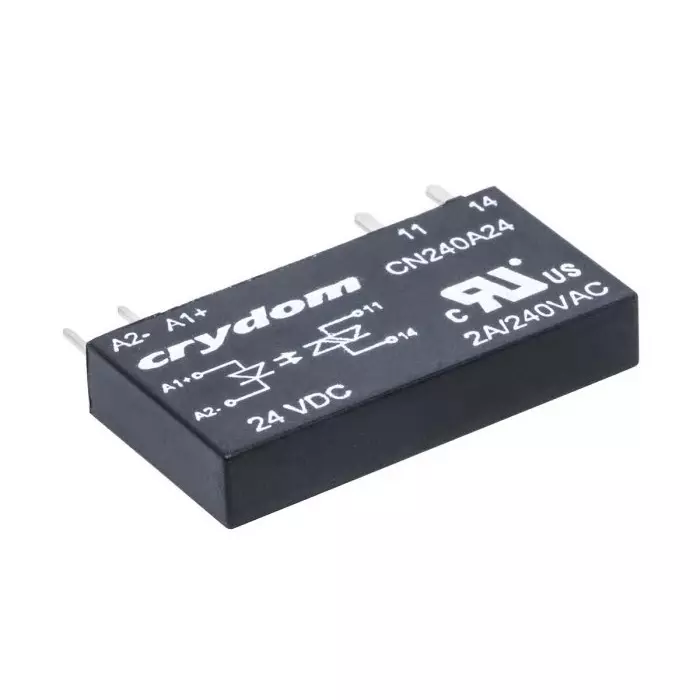

Name: SENSATA/CRYDOM Solid State Relay CN Series 2 A Load PCB Mount 280 V AC 30 DC Control, CN240A24
Brand: SENSATA/CRYDOM
SKU: IND.SOL.234050385
Price: 2241 INR
Availability: InStock

Visit the SENSATA/CRYDOM Store

Available offers

Flat ₹200 off on Order above ₹6,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹4000 | Valid for NEW Business Users

View

Flat ₹500 off on Order above ₹15000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Features

Load Voltage	24 to 280 V AC
Type of Product	Solid State Relay
Height	15 mm
Depth	5 mm

More SENSATA/CRYDOM Solid State Relay products More Solid State Relay products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Load Voltage	24 to 280 V AC
Type of Product	Solid State Relay
Height	15 mm
Depth	5 mm
Operating Temperature Range	-20 to +80°C
Mounting Type	PCB Mount
Series	CN
Maximum Load Current	2 A
Country of Origin	Mexico
Capacitance	1.5 pF
Length	28 mm
Leakage Current	4 mA
Maximum Operating Temperature	+80°C
Contact Configuration	SPST
Terminal Type	Through Hole
Minimum Operating Temperature	-20°C
Dimension	28x5x15 mm
Relay Type	Solid State Relay
Switch Type	Zero Cross
Name of Manufacturer/Packer/Importer	SENSATA/CRYDOM
Maximum Control Voltage	30 V DC
Minimum Load Current	70 mA
Minimum Control Voltage	15 V DC
Range	Crydom
Maximum Turn On Time	1/2 cycle
Control Voltage Range	15 to 30 V DC
Maximum Load Voltage	280 V AC
Minimum Load Voltage	24 V AC
Product Code	7203969
Pack of	1 Pc
Package Type	Mini-SIP
Manufacturer Part Number	CN240A24
Standards Met	CE, RoHS Compliant
