Ships within 19 days
Model No
Maximum Setting Time of Graduation
View
View
View
View
| Power Consumption | 1.5 VA (at 120 VAC) |
| Control Output | Type: Time-Delay Relay 4c, Contact Output: Opening and Closing Capacity (Resistance Load (CosΦ=1)): AC250 V 3 A, Minimum Applicable Load: DC1 V 1 mA (P Level, Reference Value) |
| Protection Class | IP40 |
| Storage Temperature | -25 to +65°C (But No Condensation or Freezing) |
Power Consumption |
1.5 VA (at 120 VAC) |
Control Output |
Type: Time-Delay Relay 4c, Contact Output: Opening and Closing Capacity (Resistance Load (CosΦ=1)): AC250 V 3 A, Minimum Applicable Load: DC1 V 1 mA (P Level, Reference Value) |
Protection Class |
IP40 |
Storage Temperature |
-25 to +65°C (But No Condensation or Freezing) |

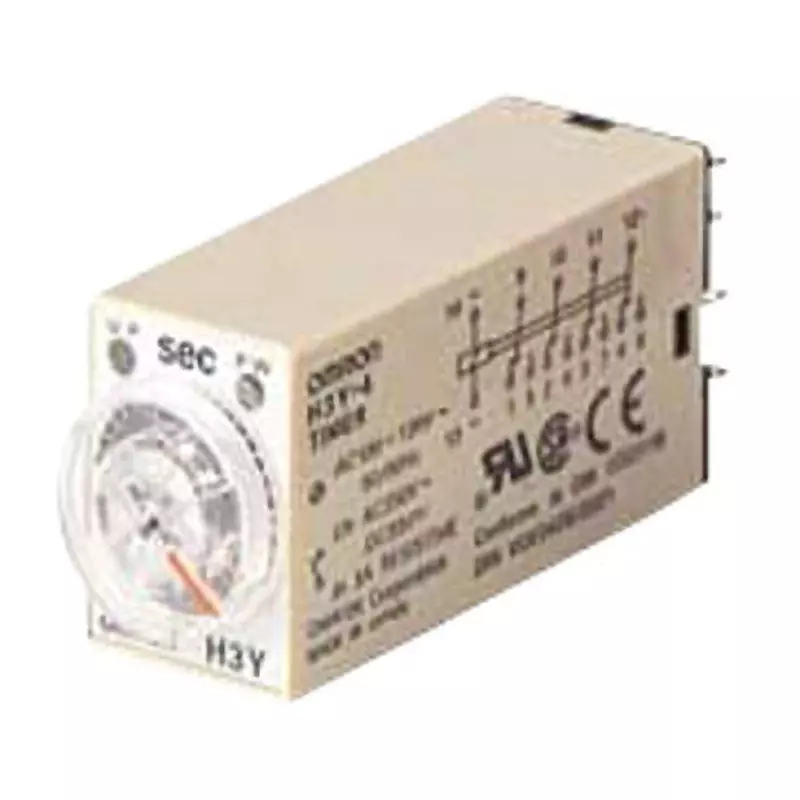

Type of Product |
Solid State Timer |
Model No |
H3Y-4 AC100-120 30S |
Mass (g) |
About 50 g |
Insulation Resistance |
100 mΩ or more (with DC 500 V Mega) |
Withstand Voltage |
Between Conductive Terminals and Exposed Non-Current Carrying Metal Parts (Excluding Terminal Screws): AC2000 V/min 50/60 Hz, Between Operation Power Supply Circuit and Control Output: AC2000 V/min 50/60 Hz, Between Contacts of Different Poles, 2-Pole Type: AC2000 V/min 50/60 Hz, Between Contacts of Different Poles, 4-Pole Type: AC1500 V/min 50/60 Hz, Between Non-Continuous Contacts: AC1000 V/min 50/60 Hz |
Type |
Monofunction Timer |
Service Life |
Over 1000 (No Load, Switching Frequency 1800 times/h) |
Maximum Setting Time of Graduation |
30s |
Timed Contacts |
4c |
Monotaro ID |
2089385 |
Adjustable Time |
1 s~30 s |
Operation Type |
Timed Operation |
Power Supply Voltage |
AC100-120 |
Terminal Structure |
Plug-In Terminal |
Series |
H3Y-4 Series |
Import Country |
Direct Import from Japan |
No. Of Pin |
14 |
Terminal Shape |
Plug-In (Surface Mounting) |
Operating Temperature Range |
-10~50°C (No Condensation or Freezing) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions (W x D x H) (mm) |
21.5 or less x 63 x 28 or less |
