| Power Consumption | Relay OFF Approx. 1.5 VA (1.1 W) Relay ON: Approx. 2.2 VA (1.8 W)(AC230V 60 Hz) |
| Control Output | AC250 V 5 A Resistive Load (CosΦ = 1), Minimum Applicable Load: DC5 V 1 mA (P Level, Reference Value) |
| Protection Class | IP40 |
| Storage Temperature | -25 to +65°C (No Freezing) |
Power Consumption |
Relay OFF Approx. 1.5 VA (1.1 W) Relay ON: Approx. 2.2 VA (1.8 W)(AC230V 60 Hz) |
Control Output |
AC250 V 5 A Resistive Load (CosΦ = 1), Minimum Applicable Load: DC5 V 1 mA (P Level, Reference Value) |
Protection Class |
IP40 |
Storage Temperature |
-25 to +65°C (No Freezing) |

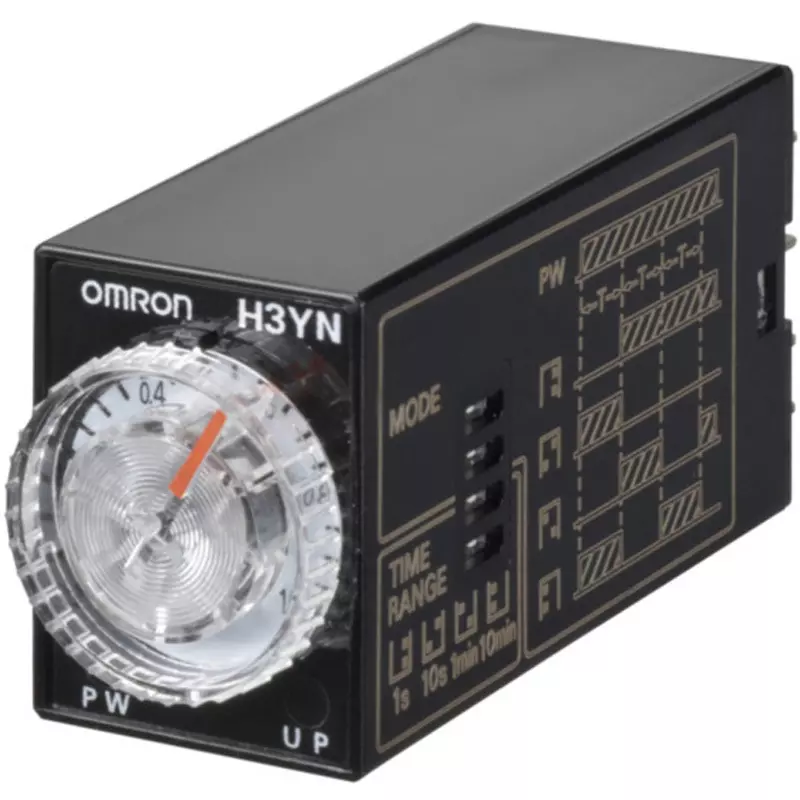

Type of Product |
Solid State Timer |
Model No |
H3YN-21-B AC200-230 |
Mass (g) |
About 50 g |
Insulation Resistance |
100 mΩ or more (Measured with DC500 V Mega) |
Influence of Voltage |
± 2% or less (At Maximum Scale Time) |
Withstand Voltage |
AC2000 V/min 50/60 Hz (Between Conductive Terminals and Exposed Non-Current Metal Parts, Excluding Terminal Screws), AC2000 V/min 50/60 Hz (Between Operation Power Circuit and Control Output), AC2000 V/min 50/60 Hz (Different Polarity Contacts) (Between 2 Pole Type)/AC1500 V/min 50/60 Hz (Between Contacts Of Different Poles, 4 Pole Type)/AC1000 V/min 50/60 Hz (Between Discontinuous Contacts) |
Type |
Long-Lasting Type |
Timed Contacts |
2C |
Monotaro ID |
24413716 |
Adjustable Time |
0.1 min to 10 h (4 Range Switching of 1 min, 10 min, 1 h, 10 h) |
Power Supply Voltage |
AC200-230 |
Operation Ambient Temperature |
-10°C to +55°C (No Freezing) |
Color |
Black |
Contact |
2c |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 55°C, Single Amplitude 0.75 mm, 3 Directions, 1h each |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions (W x D x H) (mm) |
21.5 or less x 63 x 28 or less |
