Ships within 19 days
Power Supply Voltage
Timed Contacts
Model No
View
View
View
View
| Power Consumption | When the relay is OFF, it is approximately 1.5 VA (1.1 W). When the relay is ON, it is approximately 2.2 VA (1.8 W) (AC230V 60Hz) |
| Control Output | AC250 V 3A resistance load (cosΦ = 1), minimum applicable load DC1 V 1mA (P le Vel, reference Value), contact material: Au clad + Ag alloy |
| Protection Class | IP40 |
| Storage Temperature | -25~+65℃ |
Power Consumption |
When the relay is OFF, it is approximately 1.5 VA (1.1 W). When the relay is ON, it is approximately 2.2 VA (1.8 W) (AC230V 60Hz) |
Control Output |
AC250 V 3A resistance load (cosΦ = 1), minimum applicable load DC1 V 1mA (P le Vel, reference Value), contact material: Au clad + Ag alloy |
Protection Class |
IP40 |
Storage Temperature |
-25~+65℃ |

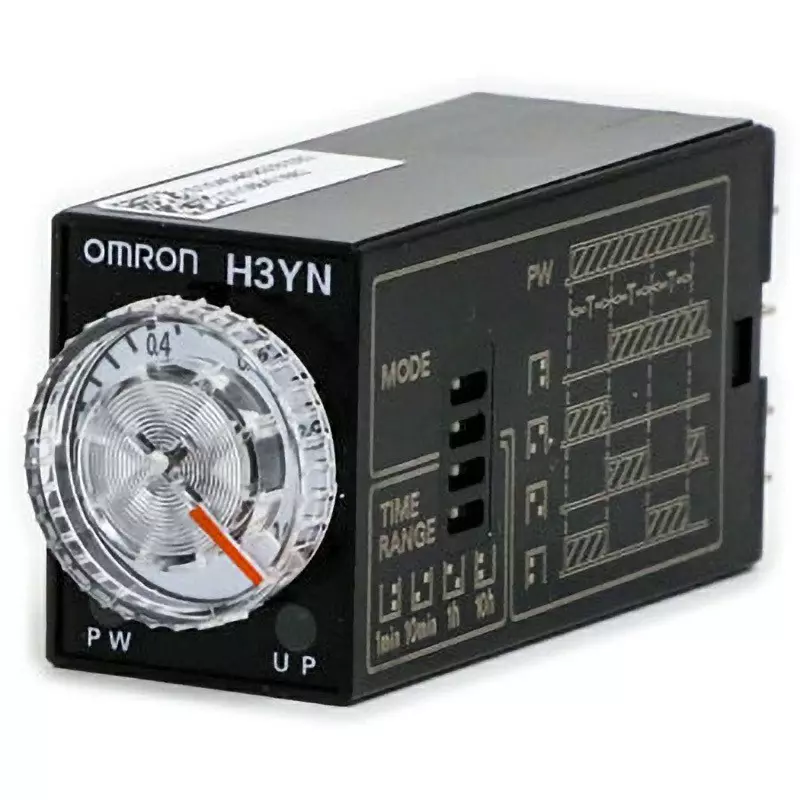

Type of Product |
Solid State Timer |
Model No |
H3YN-41-B AC200-230 |
Mass (g) |
About 50 |
Influence of Voltage |
± 2% or less (at maximum scale time) |
Withstand Voltage |
AC2000V 50/60Hz 1min (between conductive terminals and exposed non-current metal parts, excluding terminal screws) / AC2000V 50/60Hz 1min (between operation power circuit and control output) / AC2000V 50/60Hz 1min (different polarity contacts) (between 2 pole type)/AC1500V 50/60Hz 1min (between contacts of different poles, 4 pole type)/AC1000V 50/60Hz 1min (between discontinuous contacts) |
Type |
Long-Lasting Type |
Shock Resistance |
1000m/s ² 6 directions 3 times each |
Timed Contacts |
4C |
Monotaro ID |
24413558 |
Adjustable Time |
0.1 min to 10 h (4 range switching of 1 min, 10 min, 1 h, 10 h) |
Power Supply Voltage |
AC200-230 |
Ambient Humidity to Use |
35 to 85% |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 55Hz, single amplitude 0.75mm, 3 directions, 1h each |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions |
21.5 x63x28 mm or less |
Specifications |
4-hour range multi |
Insulation Resistance (MOhm) |
100 or more (measured with DC500V mega) |
Manufacturer Part Number |
H3YN-41-B AC200-230 |
Operation Ambient Temperature (°C) |
-10~+55 (no freezing) |
