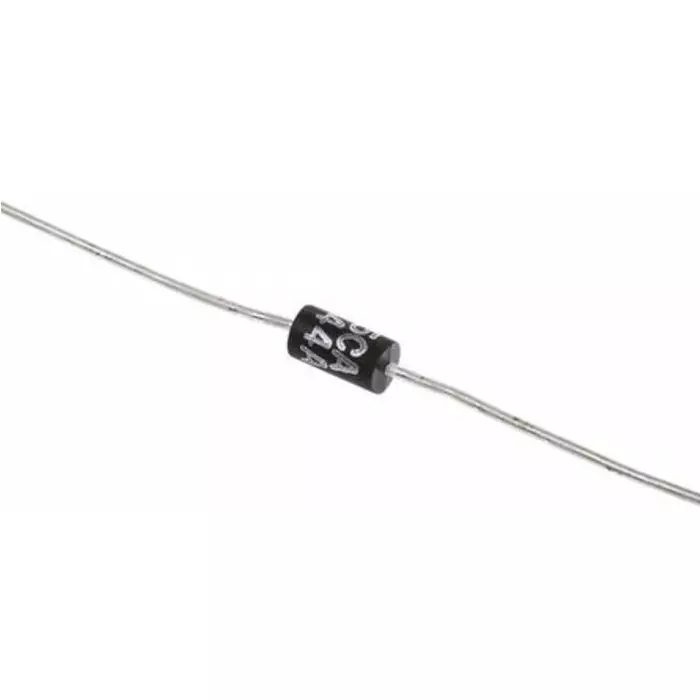

| Type of Product | Bi-Directional TVS Diode |
| Dimension | 3.6 (Dia.) x 7.6 mm |
| Model No | SA15CA-E3/54 |
| Country of Origin | China |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Bi-Directional TVS Diode |
Dimension |
3.6 (Dia.) x 7.6 mm |
Model No |
SA15CA-E3/54 |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Diode Configuration |
Single |
Maximum Clamping Voltage |
26.9 V |
Number of Elements Per Chip |
1 |
Directions |
Bi-Directional |
Breakdown Voltage |
16.7 V |
Package Type |
DO-204AC |
Mounting Type |
Through Hole |
Peak Pulse Power Dissipation |
500 W |
Pin Count |
2 |
Test Current |
1 mA |
Maximum Reverse Stand-off Voltage |
15 V |
Length |
7.6 mm |
Maximum Operating Temperature |
+175 °C |
Maximum Reverse Leakage Current |
1 µA |
Minimum Operating Temperature |
-55°C |
Maximum Peak Pulse Current |
18.6 Amp |
ESD Protection |
Yes |
Diameter |
3.6 mm |
