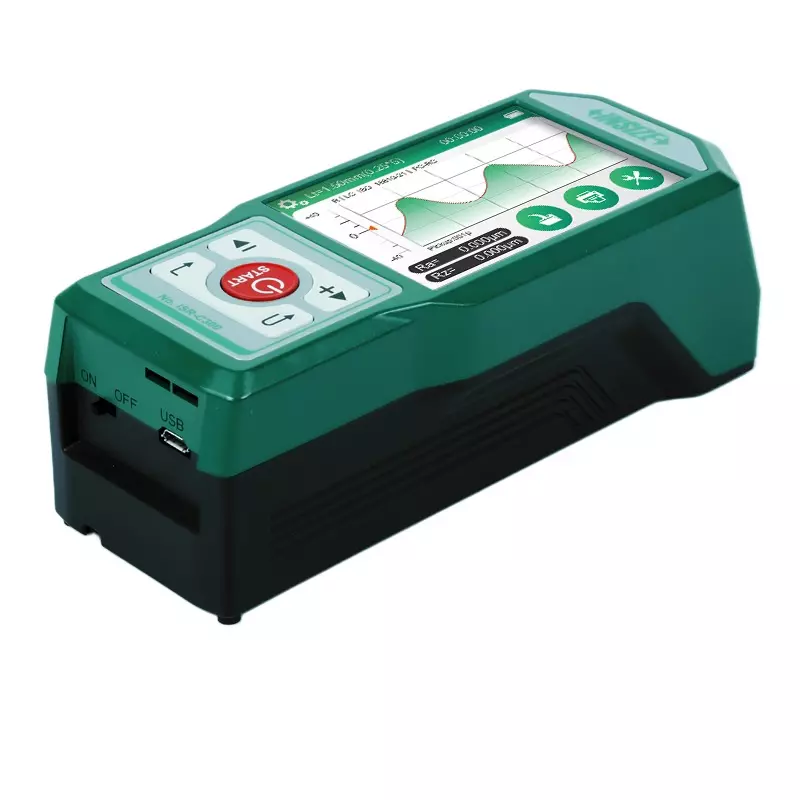

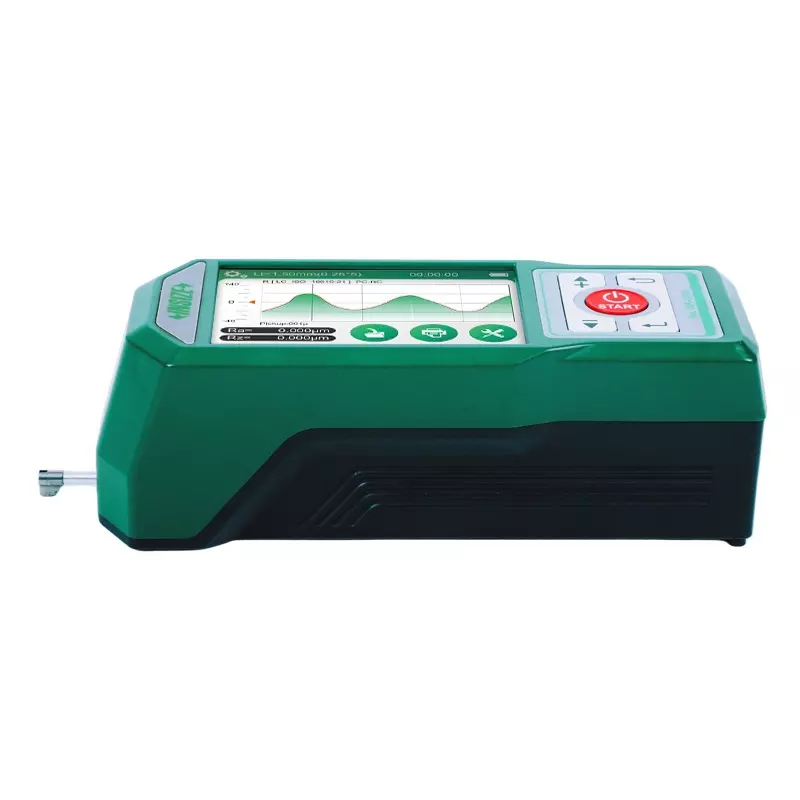

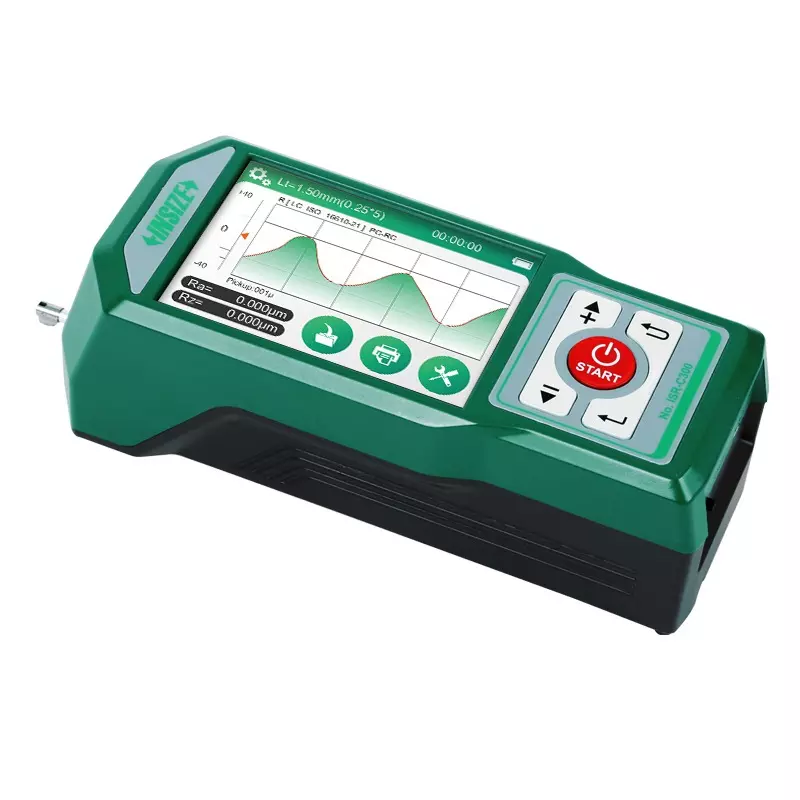

INSIZE Roughness TesterSeparable Type with 0.75 mN Measuring Force and 100 Measurement Results Memory, ISR-C301

Name: INSIZE Roughness TesterSeparable Type with 0.75 mN Measuring Force and 100 Measurement Results Memory, ISR-C301
Brand: Insize
SKU: TES.SUR.346902164
Price: 125433 INR
Availability: InStock

Visit the Insize Store

EMI starts at ₹11145/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Features	Roughness tester can be operated by mobile phones or computers Optional wireless or Bluetooth receivers can be used to output keyboard signals, connecting to a computer to send data to Excel Support bluetooth printer 36 roughness parameters Meet ISO, DIN, ANSI, JIS standards Display roughness values, profile and curve Memory of maximum 100 data and waveform Touchu screen
Type of Product	Roughness Tester
Model No	ISR-C301
Resolution	0.001 µm

More Insize Surface Measuring Instruments products More Surface Measuring Instruments products

7 Days Return Policy

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

description

Features	Roughness tester can be operated by mobile phones or computers Optional wireless or Bluetooth receivers can be used to output keyboard signals, connecting to a computer to send data to Excel Support bluetooth printer 36 roughness parameters Meet ISO, DIN, ANSI, JIS standards Display roughness values, profile and curve Memory of maximum 100 data and waveform Touchu screen
Type of Product	Roughness Tester
Model No	ISR-C301
Resolution	0.001 µm
Accuracy	±10 %
Memory	100 Measurement Results
Cut off	0.25/0.8/2.5 mm
Material	Stylus: Diamond
Parameter	Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, Rc, Rz(JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax, R5p, R5v, R10z, Rpt, Rvt, Ry5, tp1, tp2, Rmrc1, Rmrc2, Rpkx, Rvkx, Ramax, Rzmax
Dimension	158x64x52 mm
Standard	ISO, DIN, ANSI, JIS standards
Power Source	In-Built Rechargeable Battery
Type	Separable
Range	X Axis 17.5 mm/Z Axis 400 µm (-200 µm - 200 µm)
Measuring Force	0.75 mN
Angle	60°
Radius	Stylus: 2 µm
Moving Speed	0.135 mm/s, 0.5 mm/s, 1 mm/s
Country of Origin	China
Name of Manufacturer/Packer/Importer	INSIZE
Package Contains	Main unit (1 pc), Standard probe (included in ISR-C300) (1 pc), Standard probe (included in ISR-C301) (1 pc), Calibration block and support (1 pc of each), Connecting cable (1 pc), Magnetic stand adapter (1 pc), Adjustable stand (1 pc), Support for flat surface (1 pc), Touch pen (1 pc), Software and USB cable (1 pc), AC/DC adapter (1 pc)
Data Output	USB and Bluetooth
Units	µm/µin
Probe Type	Inductive
Net Weight	400 g
No. of Cut Off	1/5
