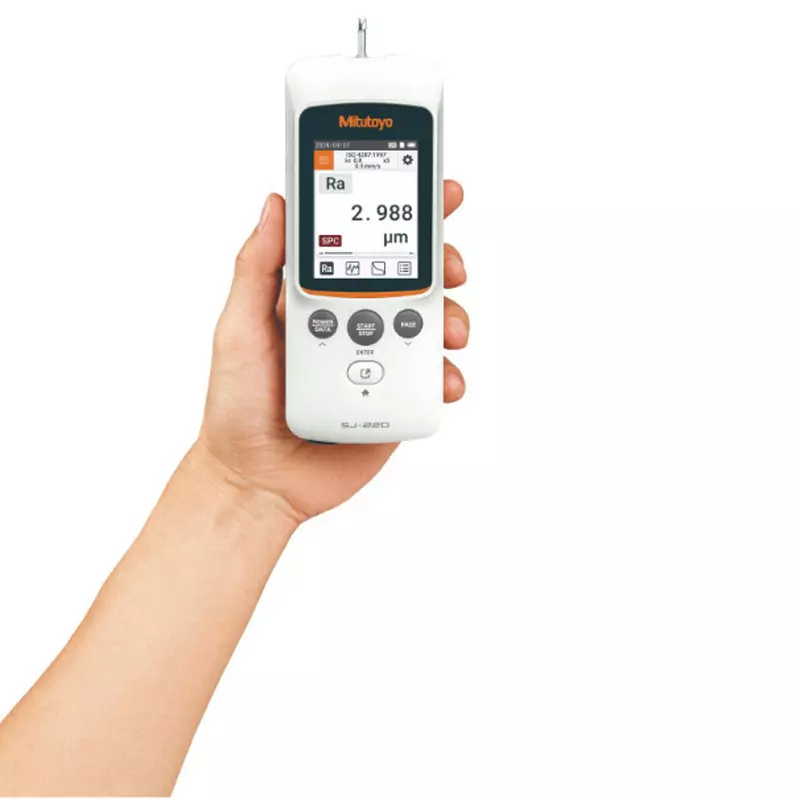

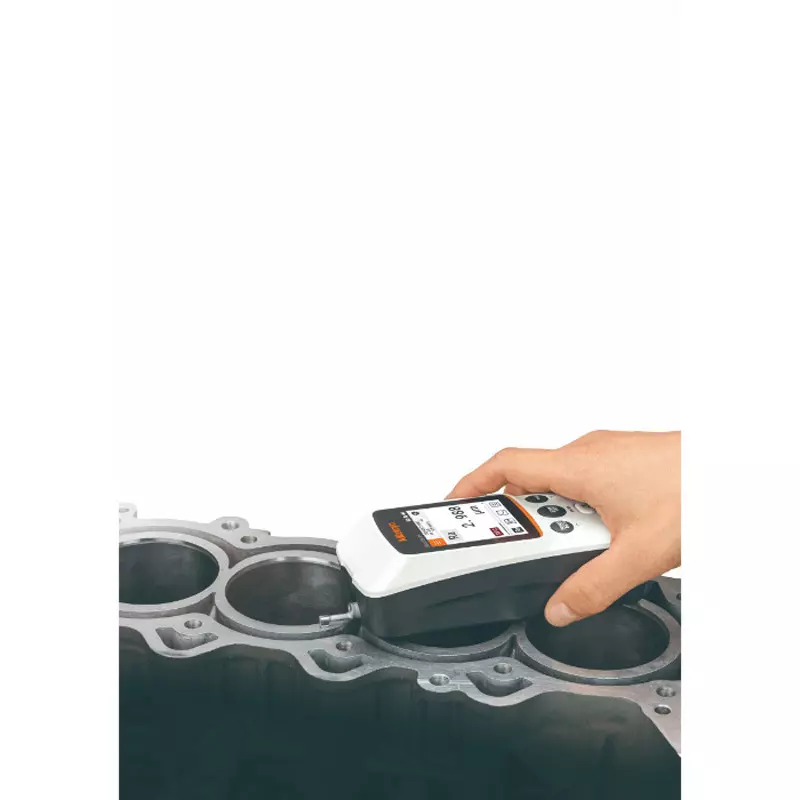

Mitutoyo On-site Roughness Tester (surf Test) 0.75mN X-Axis: 17.5 mm, SJ-220.

Name: Mitutoyo On-site Roughness Tester (surf Test) 0.75mN X-Axis: 17.5 mm, SJ-220.
Brand: Mitutoyo
SKU: TES.SUR.337915562
Price: 318599 INR
Availability: InStock

Visit the Mitutoyo Store

EMI starts at ₹28307/month. No Cost EMI available.

Available offers

Flat ₹300 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹200 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features

Type of Product	On-site Roughness Tester (surf Test) 0.75mN
Model No	SJ-220.
Included Components	12AAY583 (handy case), 12BAA303 (connection cable), 12BAS450 (AC adapter), 12BAS451 (USB 2.0 cable), 178-601-1 (roughness standard (mm)), 12BAK700 (calibration table), 12BAS476 (built-in battery switch operation tool), instruction manuals, warranty card
Applicable Standard	JIS B 0601:1982, JIS B 0601:1994, JIS B 0601:2013, JIS B 0671:2002, JIS B 0631:2000, ISO 4287:1997, ISO 13565:1996, ISO 12085:1996, ISO 21920:2021, ASME B46.1, VDA2006

More Mitutoyo Surface Measuring Instruments products More Surface Measuring Instruments products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Type of Product	On-site Roughness Tester (surf Test) 0.75mN
Model No	SJ-220.
Included Components	12AAY583 (handy case), 12BAA303 (connection cable), 12BAS450 (AC adapter), 12BAS451 (USB 2.0 cable), 178-601-1 (roughness standard (mm)), 12BAK700 (calibration table), 12BAS476 (built-in battery switch operation tool), instruction manuals, warranty card
Applicable Standard	JIS B 0601:1982, JIS B 0601:1994, JIS B 0601:2013, JIS B 0671:2002, JIS B 0631:2000, ISO 4287:1997, ISO 13565:1996, ISO 12085:1996, ISO 21920:2021, ASME B46.1, VDA2006
Tip Shape	Stylus: Radius 2μm, angle 60°
Type	Standard Drive
Monotaro ID	8798198
Import Country	Direct Import from Japan
Battery	[Built-in] Charging time: Up to 4 hours (can be used while charging) This is the charging time when using the included AC adapter. Number of measurements possible: Approximately 1000 times (when fully charged) Charging start temperature: 5°C to 40°C If the ambient temperature is high, charging may be insufficient.
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	Mitutoyo Corporation
Measuring_Range	X-Axis: 17.5 mm
Product Code	178-741-11
skid pressure(mN)	400 or less
Surface Roughness	[Measurement speed X-axis (mm/s)] Measurement: 0.25, 0.5, 0.75, 1 Return: 1
Input/Output	[External] USB I/F (Type-C) / Digimatic output / RS-232C I/F / Foot switch I/F / BLE I/F *Digimatic, RS-232C, and BLE cannot be used together
Surface Roughness (μm)	[Measuring range Z1 axis] 360 (-200μm to +160μm)
Detector	Measuring force (mN): 0.75
