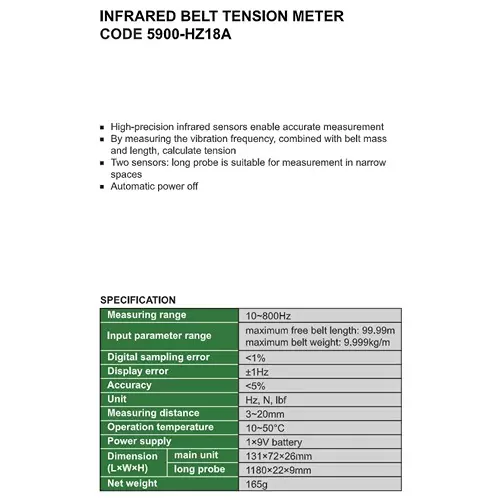

| Type of Product | Infrared Belt Tension Meter |
| Dimension | Main Unit: 131x72x26 mm, Long Probe: 1180x22x9 mm |
| Model No | 5900-HZ18A |
| Accuracy | < 5% |
Type of Product |
Infrared Belt Tension Meter |
Dimension |
Main Unit: 131x72x26 mm, Long Probe: 1180x22x9 mm |
Model No |
5900-HZ18A |
Accuracy |
< 5% |
Range |
10-800 Hz |
Power Supply |
1 x 9 V Battery |
Operating Temperature |
10 to 50°C |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
INSZIE |
Units |
Hz, N, lbf |
Package Contains |
1 x Main Unit, 1 x Long Probe, 1 x Short Probe, 3 x Reflection Sticker |
Distance |
Measuring: 3 to 20 mm |
Error |
Digital Sampling: < 1%, Display: ± 1 Hz |
Input Parameter |
Maximum Free Belt Length: 99.99 m, Maximum Belt Weight: 9.999 Kg/m |
Features |
High-precision infrared sensors enable accurate measurement By measuring the vibration frequency, combined with belt mass and length, calculate tension Two sensors: long probe is suitable for measurement in narrow spaces Automatic power off |
Auto Shutoff |
Yes |
Net Weight |
165 g |
