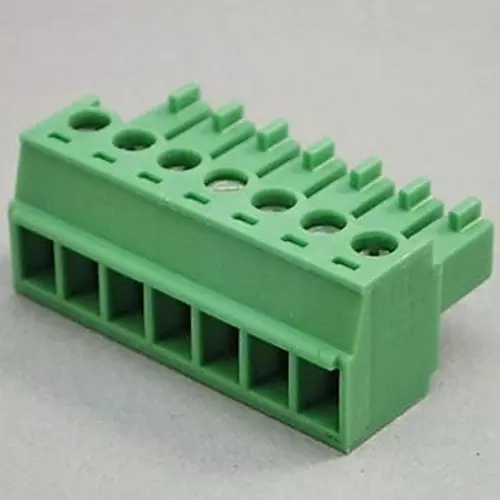

| Model No | XW4B-07B1-H1 |
| Type of Product | PCB Connector Terminal Block |
| Rated Current (A) | IEC/DIN, VDE: 8 (Ambient temperature 40°C or less) UL/CSA: 8 |
| Part No | 64-3406-06 |
Model No |
XW4B-07B1-H1 |
Type of Product |
PCB Connector Terminal Block |
Rated Current (A) |
IEC/DIN, VDE: 8 (Ambient temperature 40°C or less) UL/CSA: 8 |
Part No |
64-3406-06 |
Housing Material |
Polyamide resin (UL94V-0) / green |
Standard |
RoHS directive, UL standard (file No.E245101), IEC / DIN, VDE standard, UL / CSA standard |
Suitable Wire |
AWG28 to AWG16 |
Contact Spacing (mm) |
3.81 |
Shape |
Connector terminal block |
Withstand Voltage |
AC2500V, 1min |
Rated Voltage (V) |
IEC/DIN, VDE：AC160 UL/CSA：AC300 |
Suitable Circuit Board Thickness (mm) |
1.6 |
Monotaro ID |
39110321 |
Tightening Torque (Nm) |
0.22 to 0.25 |
Length (mm) |
Wire stripping length: 7 ± 1 |
No. of Pole |
7 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Pack of |
1 Pcs |
Terminal Shape |
Power terminal block (socket) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Dimension A1 |
27.5 mm |
Operation Ambient Temperature (°C) |
-40 to +100 |
Dimension B (Φmm) |
22.86 |
Insulation Resistance (MOhm) |
100 mohm or more (DC500 V) |
Dimension A2 (mm) |
28.1 |
