Ships within 19 days
No. of Pole
View
View
View
View

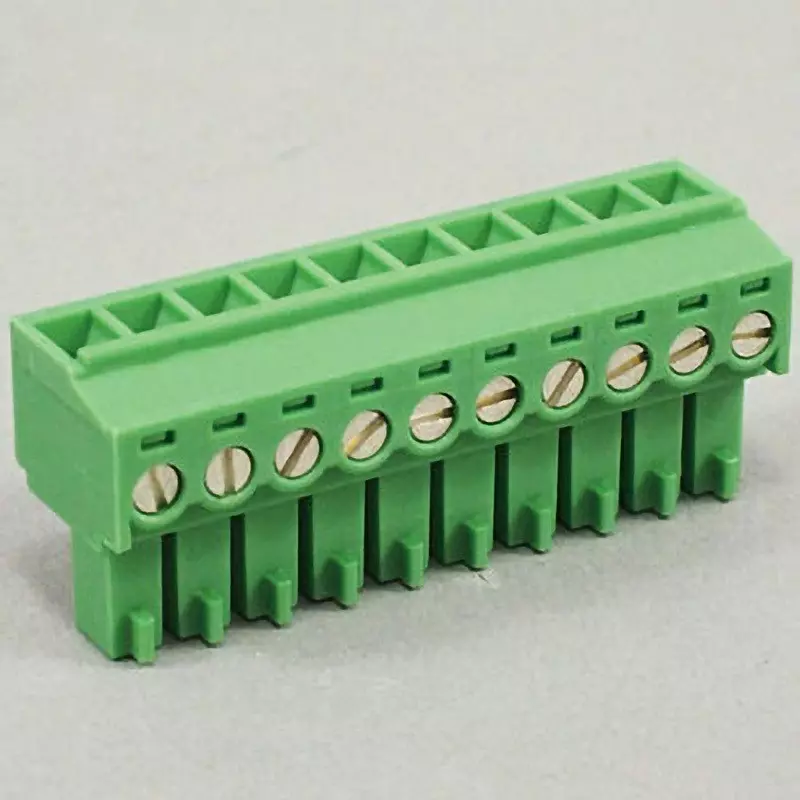

| Model No | XW4B-10B1-H1 |
| Type of Product | PCB Connector Terminal Block (Electric Wire Side / Socket) |
| Rated Current (A) | IEC/DIN, VDE: 8 (Ambient temperature 40°C or less) UL/CSA: 8 |
| Series | XW4B Series |
Model No |
XW4B-10B1-H1 |
Type of Product |
PCB Connector Terminal Block (Electric Wire Side / Socket) |
Rated Current (A) |
IEC/DIN, VDE: 8 (Ambient temperature 40°C or less) UL/CSA: 8 |
Series |
XW4B Series |
Part No |
64-3406-12 |
Housing Material |
Polyamide resin (UL94V-0) / green |
Standard |
RoHS directive, UL standard (file No.E245101), VDE / IEC standard, CSA standard (pending) |
Suitable Wire |
AWG28 to AWG16 |
Shape |
Connector Terminal Block |
Withstand Voltage |
AC2500V、1min |
Rated Voltage (V) |
IEC/DIN、VDE：AC160 UL/CSA：AC300 |
Monotaro ID |
8595282 |
Tightening Torque (Nm) |
0.22 to 0.25 |
Length (mm) |
Wire stripping length: 7 ± 1 |
No. of Pole |
10 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Shape |
Power terminal block (socket) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
XW4B-10B1-H1 |
Dimension A1 |
38.9 mm |
Nominal Diameter |
Terminal screw: M2 |
Contact Spacing |
3.81 mm |
Operation Ambient Temperature (°C) |
-40 to +100 |
Dimension B (Φmm) |
φ34.29 mm |
Insulation Resistance (MOhm) |
100 or more (DC500V) |
Dimension A2 (mm) |
39.5 |
