| Model No | XW4E-10B1-S1 |
| Type of Product | Printed Circuit Board Terminal Block |
| Rated Current (A) | IEC / DIN, VDE: 10 (ambient temperature 40°C or less), UL / CSA: 10 |
| Part No | 64-3406-86 |
Model No |
XW4E-10B1-S1 |
Type of Product |
Printed Circuit Board Terminal Block |
Rated Current (A) |
IEC / DIN, VDE: 10 (ambient temperature 40°C or less), UL / CSA: 10 |
Part No |
64-3406-86 |
Standard |
RoHS Directive, UL Standard (File No. E245101), VDE / IEC Standard, CSA Standard |
Suitable Wire |
AWG 26 to AWG 16 |
Shape |
Inclined terminal block |
Withstand Voltage |
AC 2500V, 1 min |
Rated Voltage (V) |
IEC/DIN, VDE：AC160 - UL/CSA：AC300 |
Suitable Circuit Board Thickness (mm) |
1.6 |
Monotaro ID |
8595054 |
Tightening Torque (Nm) |
0.22 to 0.25 |
Length (mm) |
Wire stripping length: 5 ± 1 |
No. of Pole |
10 |
Material (Clamp Cage) |
Copper alloy |
Country of Origin |
GERMANY |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |

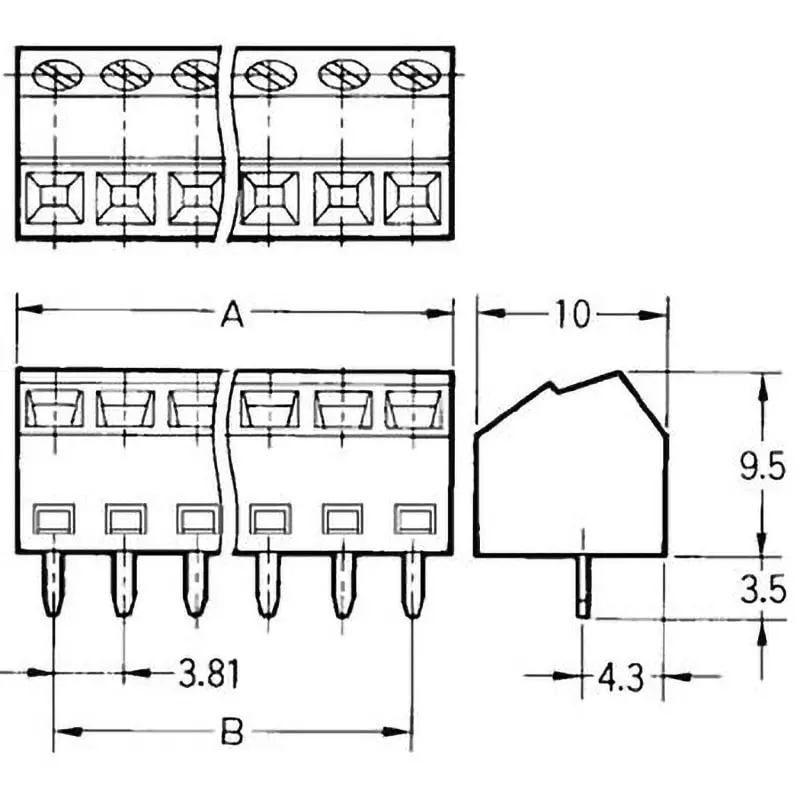

Contact Spacing |
3.81 mm |
Operation Ambient Temperature (°C) |
-40 to +100 |
Dimension B (Φmm) |
34.29 |
Insulation Resistance (MOhm) |
100 or more (DC500 V) |
Dimension A (Φmm) |
38.1 |
