Ships within 19 days
No. of Pole
View
View
View
View
| Type | Screw Type |
| Model No | XW4E-07C1-S1 |
| Type of Product | Printed Circuit Board Terminal Block |
| Rated Current (A) | IEC / DIN, VDE: 13.5 (ambient temperature 40°C or less), UL / CSA: 10 |
Type |
Screw Type |
Model No |
XW4E-07C1-S1 |
Type of Product |
Printed Circuit Board Terminal Block |
Rated Current (A) |
IEC / DIN, VDE: 13.5 (ambient temperature 40°C or less), UL / CSA: 10 |
Series |
XW4E Series |
Part No |
64-3406-75 |
Standard |
RoHS Directive, UL Standard (File No. E245101), VDE / IEC Standard, CSA Standard |
Suitable Wire |
AWG 26 to AWG 16 |
Shape |
Inclined Terminal Block |
Withstand Voltage |
AC 3000V, 1 min |
Rated Voltage (V) |
IEC/DIN, VDE：AC250 - UL/CSA：AC300 |
Suitable Circuit Board Thickness (mm) |
1.6 |
Monotaro ID |
39110425 |
Tightening Torque (Nm) |
0.5 to 0.6 |
Length (mm) |
Wire stripping length: 6 ± 1 |
No. of Pole |
7 Pole |
Material (Clamp Cage) |
Copper alloy |
Country of Origin |
Germany |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |

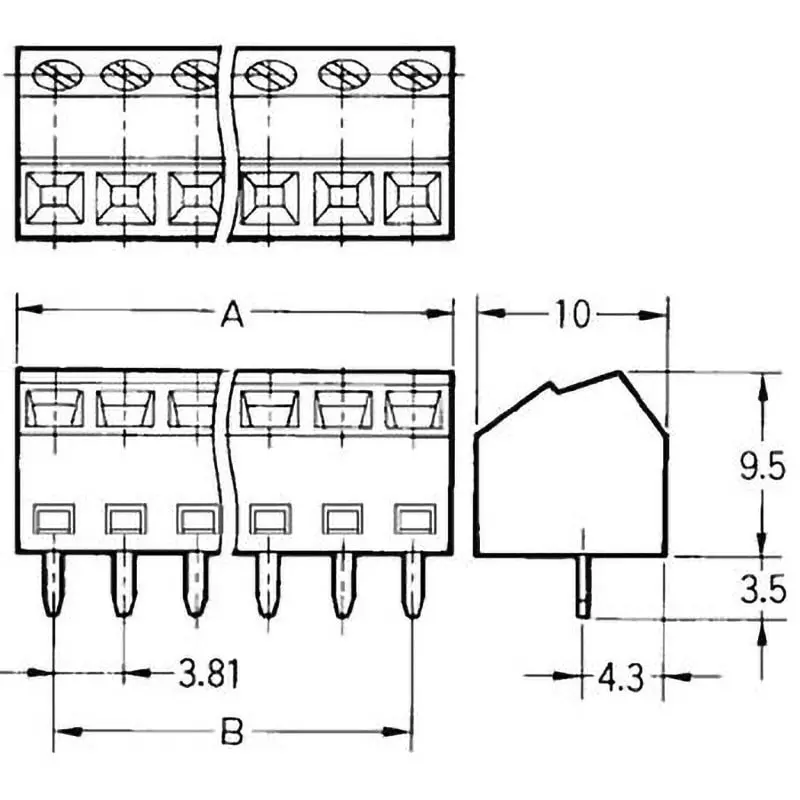

Dimension A1 |
35.6 mm |
Contact Spacing |
5.08 mm |
Operation Ambient Temperature (°C) |
-40 to +100 |
Dimension B (Φmm) |
30.48 |
Insulation Resistance (MOhm) |
100 or more (DC500 V) |
Dimension A2 (mm) |
36.48 |
