Ships within 19 days
No. of Pole
View
View
View
View
| Model No | XW4A-07C1-V1 |
| Type of Product | PCB Terminal Block |
| Part No | 64-3405-83 |
| Housing Material | PBT resin (UL94V-0) / green or polyamide resin (UL94V-0) / green |
Model No |
XW4A-07C1-V1 |
Type of Product |
PCB Terminal Block |
Part No |
64-3405-83 |
Housing Material |
PBT resin (UL94V-0) / green or polyamide resin (UL94V-0) / green |
Standard |
RoHS directive, UL standard (file No.E245101), IEC / DIN, VDE standard, UL / CSA standard |
Suitable Wire |
AWG24 to AWG14 |
Contact Spacing (mm) |
5.08 |
Shape |
Connector Terminal Block |
Withstand Voltage |
AC3000V, 1min |
Suitable Circuit Board Thickness (mm) |
1.6 |
Monotaro ID |
39110242 |
Tightening Torque (Nm) |
0.5 to 0.6 |
Length (mm) |
Wire stripping length: 7 ± 1 |
No. of Pole |
7 |
Contact Material |
Contact: Copper alloy / nickel base tin plating (5μm) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Output |
12 (ambient temperature 40 ° C or less) |
Pack of |
1 Pcs |
Terminal Shape |
Board Side Terminal Block (Plug, Straight Terminal) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |

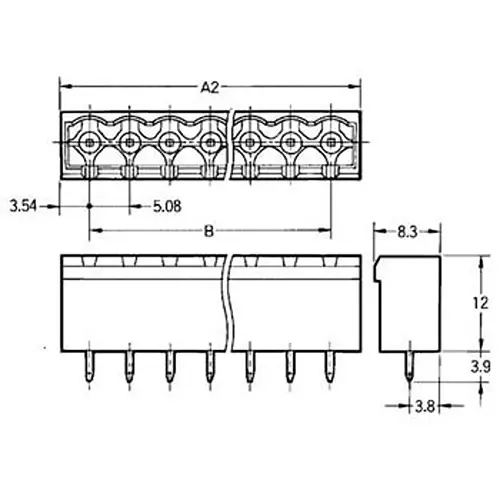

Dimension A1 |
35.6 mm |
Operation Ambient Temperature (°C) |
-40 to +100 |
Dimension B (Φmm) |
30.48 |
Insulation Resistance (MOhm) |
100 mohm or more (DC500 V) |
Dimension A2 (mm) |
37.6 |
IEC / DIN, VDE Rated Voltage (V) |
250 |
