| Model No | XW4A-09C1-V1 |

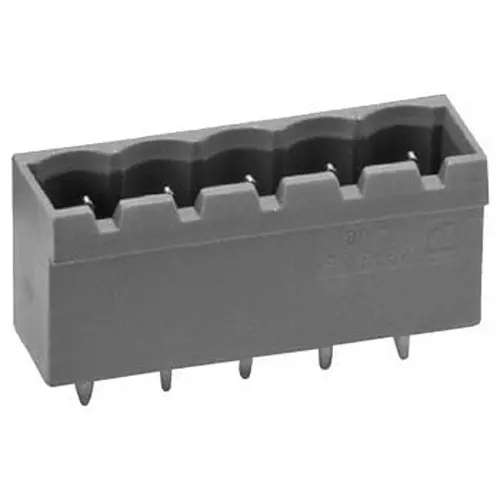

| Type of Product | PCB Terminal Block |
| Part No | 64-3405-91 |
| Housing Material | PBT resin (UL94V-0) / green or polyamide resin (UL94V-0) / green |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
XW4A-09C1-V1 |
Type of Product |
PCB Terminal Block |
Part No |
64-3405-91 |
Housing Material |
PBT resin (UL94V-0) / green or polyamide resin (UL94V-0) / green |
Standard |
RoHS directive, UL standard (file No.E245101), IEC / DIN, VDE standard, UL / CSA standard |
Suitable Wire |
AWG24 to AWG14 |
Contact Spacing (mm) |
5.08 |
Shape |
Connector terminal block |
Withstand Voltage |
AC3000V, 1min |
Suitable Circuit Board Thickness (mm) |
1.6 |
Monotaro ID |
39110285 |
Tightening Torque (Nm) |
0.5 to 0.6 |
Length (mm) |
Wire stripping length: 7 ± 1 |
No. of Pole |
9 |
Contact Material |
Contact: Copper alloy / nickel base tin plating (5μm) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Output |
12 (ambient temperature 40 ° C or less) |
Pack of |
1 Pcs |
Terminal Shape |
Board side terminal block (plug, straight terminal) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |

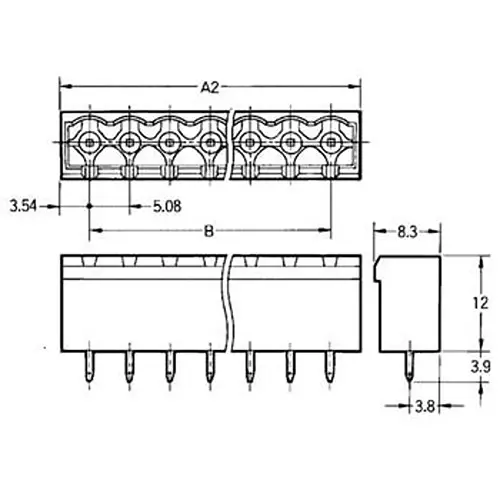

Dimension A1 |
45.7 mm |
Operation Ambient Temperature (°C) |
-40 to +100 |
Dimension B (Φmm) |
40.46 |
Insulation Resistance (MOhm) |
100 mohm or more (DC500 V) |
Dimension A2 (mm) |
47.7 |
IEC / DIN, VDE Rated Voltage (V) |
250 |
