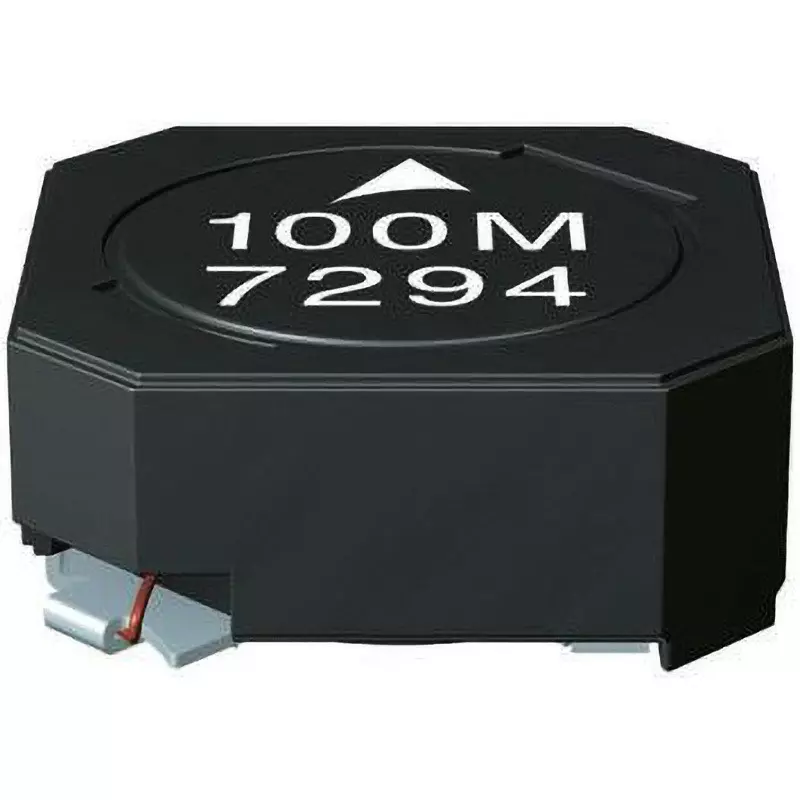

| Type of Product | Wirewound Inductor |
| Tolerance | ±20% |
| Model No | B82462G4104M000 |
| Country of Origin | Japan |
Type of Product |
Wirewound Inductor |
Tolerance |
±20% |
Model No |
B82462G4104M000 |
Country of Origin |
Japan |
Series |
B82462-G4 |
Monotaro ID |
49910045 |
RoHS Directive |
Correspondence |
Height (mm) |
3 |
Length (mm) |
6.3 |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Epcos |
Maximum Frequency |
8.5 MHz |
DC Resistance |
580 mΩ |
Core Material |
Ferrite |
Import Country |
Direct Import from Japan |
Specifications |
Inductance = 100 μH Maximum DC Current = 530mA Length = 6.3 mmDepth = 6.3 mmHeight = 3 mmDimensions = 6.3 x 6.3 x 3 mmShield = Yes Tolerance = ±20% Maximum DC Resistance = 580mΩ Series = B82462-G4 Core Material = Ferrite maximum self-resonant frequency = 8.5MHz Inductor structure = Wirewound |
Inductance (H) |
100 μ |
Maximum Current (A) |
530 m |
Shielding Type |
Yes |
inductor Type |
Winding type |
