| Lens Material | PC |
| Type | without Buzzer/Flashing |
| Diameter | 50 mm |
| Model No | LR5-102LJNW-R |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Lens Material |
PC |
Type |
without Buzzer/Flashing |
Diameter |
50 mm |
Model No |
LR5-102LJNW-R |
Flash Rate |
60±2 Flashes per minute |
Protection Class |
IP54 / NEMA TYPE 4X, 13 |
Rated Voltage |
24 V DC |
Type of Product |
Signal Tower Light |
Weight |
530 g |
Input Type |
PNP/NPN |
Country of Origin |
India |
Mounting Style |

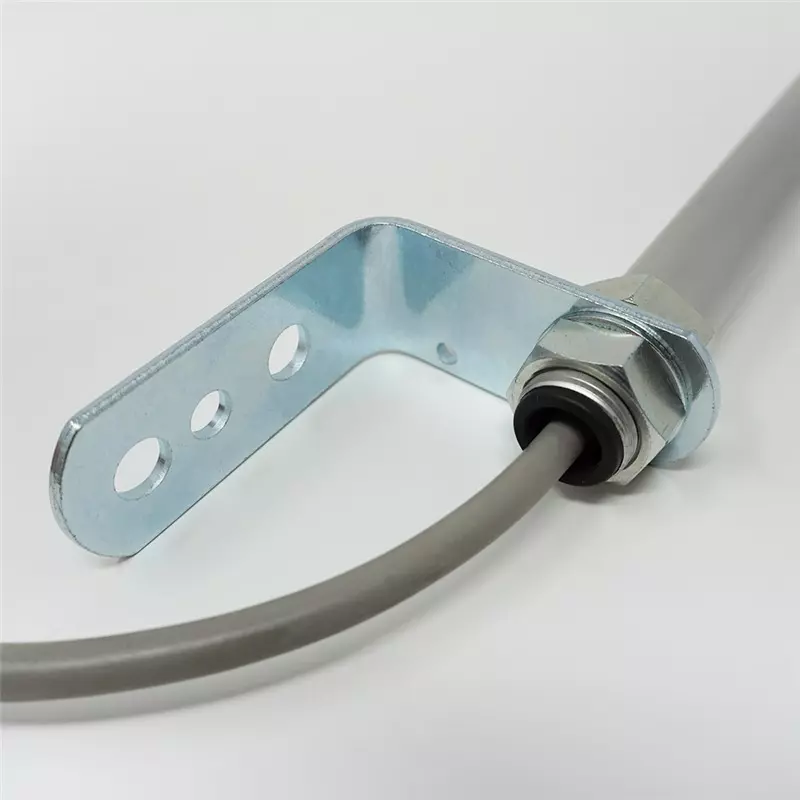

Pole Mount with L-Bracket |
LED Color |
Red |
Name of Manufacturer/Packer/Importer |
Patlite |
Mounting Direction |
Upright |
Operating Ambient Temperature |
-20℃ to +50℃ |
Mounting Location |
Indoors |
Body Color |
Off-White |
buzzer |
Typ. 85 dB |
Insulation Resistance |
More than 1 MΩ at 500 V DC between live part and non-current carrying metallic part |
Connection |
Cable (1000 mm) |
Operating Ambient Humidity |
Less than 90% RH (No Condensation) |
Withstand Voltage |
1500 V AC applied for 1 minute between li Ve part and non-current carrying metallic part without breaking insulation |
Storage Ambient Temperature |
-30℃ to +60℃ |
Storage Ambient Humidity |
Less than 90% RH (No Condensation) |
No. of Tiers |
1 |
Standard Compliance |
UL 508, CSA-C22.2 No.14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN IEC 63000), FCC Part 15 Subpart B Class A |
| Select | Quantity | Discounted price per piece(Incl. of all taxes) |
|---|---|---|
| 3-4 | ₹8,209.04 | |
| 5-8 | ₹8,196.60 | |
| 9-14 | ₹8,184.15 | |
| 15-more | ₹8,171.71 |
