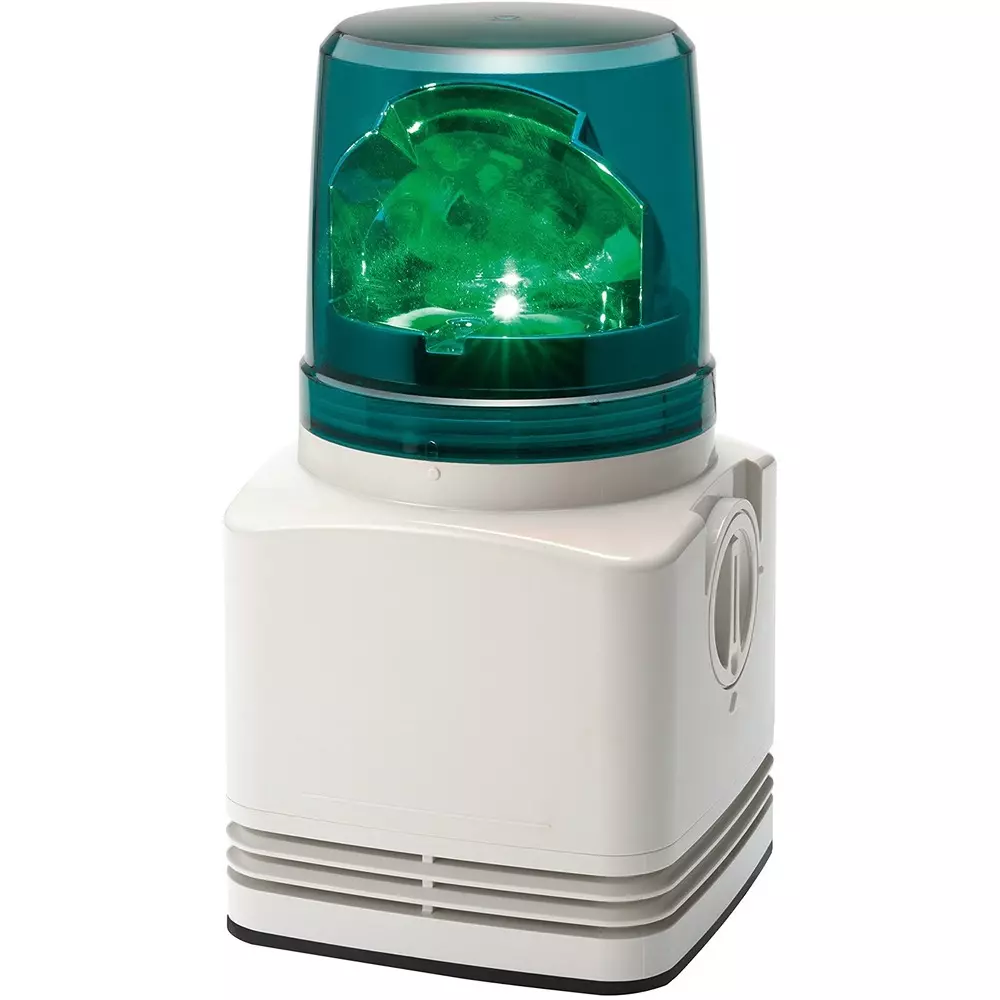

| Model No | RFT-100A-G |
| Color | Green |
| Type of Product | LED Revolving Light |
| Country of Origin | Japan |
Model No |
RFT-100A-G |
Color |
Green |
Type of Product |
LED Revolving Light |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Operating Temperature Range |
-10 to +50℃ (85% or less humidity) |
Import Country |
Direct Import from Japan |
Monotaro ID |
85914245 |
Rated Voltage (V) |
AC100 |
Mass (Kg) |
1.2±10% |
Playback Channel |
Bit input (8CH), binary input (32CH) |
Maximum Power Consumption (w) |
13 |
Sound Pressure Level (dB) |
Up to 90 (at 1m) |
Nominal Sectional Area (mm²) |
Power line / 0.75, signal line / AWG22 |
Allowable Voltage Range |
AC100±10% V |
Contact Capacity |
Battery capacity / 10mA, withstand voltage / DC20V or more, leakage current / 0.1mA or less, ON voltage (Vsat) / 1V or less |
Number of Flashes (min-1 [times/min]) |
115±15 |
Line Type |
Power supply line / VSF, signal line / UL1061 |
Correction |
A |
