| Type | with Buzzer/Flashing |
| Diameter | 60 mm |
| Model No | LR6-3M2LJBW-RYG |
| Flash Rate | 60 ±2 Flashes / Minute |
Type |
with Buzzer/Flashing |
Diameter |
60 mm |
Model No |
LR6-3M2LJBW-RYG |
Flash Rate |
60 ±2 Flashes / Minute |
Protection Class |
IP54 |
Type of Product |
Signal Tower Light |
Country of Origin |
India |

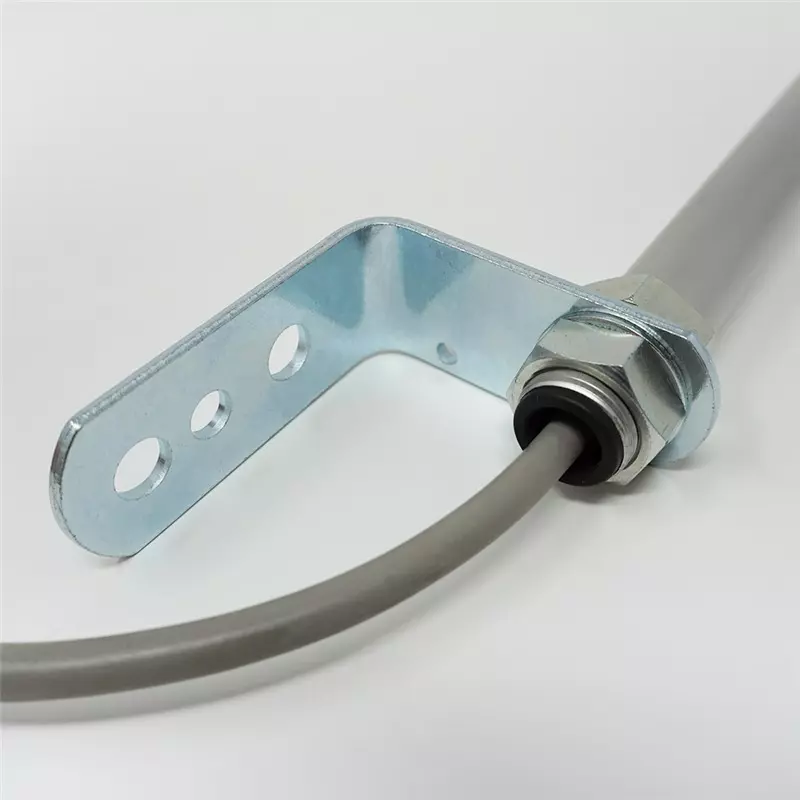

Mounting Style |
Pole Mount with L-Bracket/Cable |
Sound Level |
88 dB Buzzer Sound No.4 (Sweep) from All Directions at a 1 m Distance |
Name of Manufacturer/Packer/Importer |
Patlite |
Storage Temperature Range |
-30℃ to +60℃ |
Mounting Direction |
Upright Position |
Operating Ambient Temperature |
-20℃ to +50℃ |
Mounting Location |
Indoors |
Insulation Resistance |
More than 1 MΩ at 500 V DC between live part and non-current carrying metallic part |
Operating Ambient Humidity |
90% RH or Less, No Condensation |
Withstand Voltage |
M2: 1500 V AC applied for 1 minute between li Ve part and non-current carrying metallic part without breaking insulation |
Buzzer Sound |
4 Patterns: No.1 Rapid Intermittent Sound, No.2 Continuous Sound, No.3 Rapid Hi-Low, No.4Sweep Sound |
Standard Compliance |
UL 508, CSA-C22.2 No.14, FCC Part 15 Subpart B Class A, RoHS Directive (EN 50581), EMC Directive (EN 61000-6-4, EN 61000-6-2), Low Voltage Directive (IEN/EN60947-5-1,EN62471) |
Storage Humidity Range |
90% RH or Less, No Condensation |
Transistor Output |
NPN / PNP (AC100 - 240 V is NPN only) |
Sound Reduction |
ab. -10 dB reduction |
