Ships within 30 days
View
View
View
View
| Type | with Buzzer, Flashing, Revolving |
| Diameter | 100 mm |

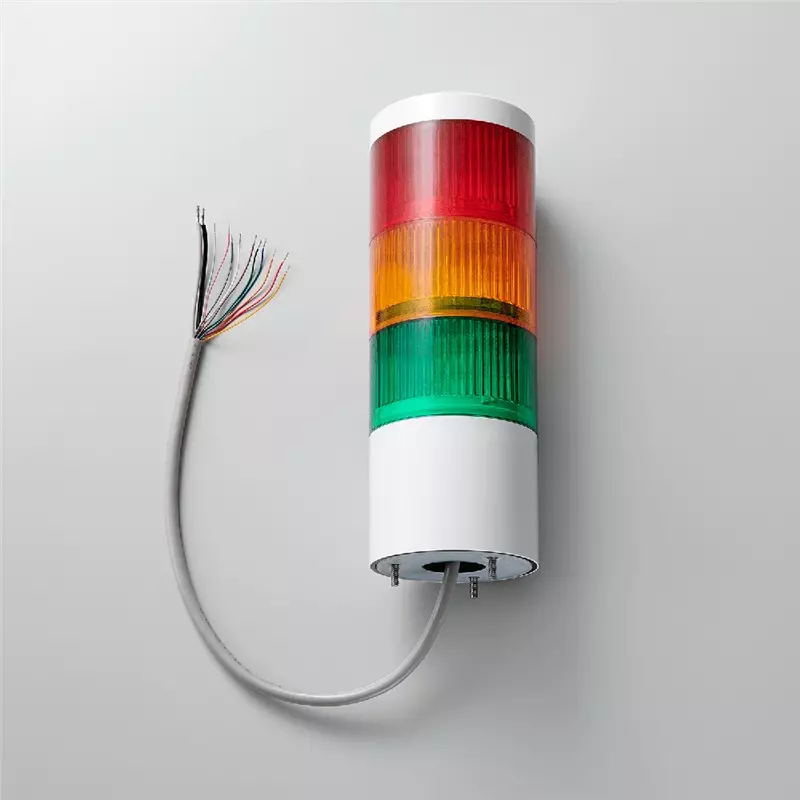

| Model No | LR10-302WJBW-RYG |
| Protection Class | IP69K |
Type |
with Buzzer, Flashing, Revolving |
Diameter |
100 mm |
Model No |
LR10-302WJBW-RYG |
Protection Class |
IP69K |
Color |
Red, Amber, Green |
Type of Product |
Multifuctiion Signal Tower Light |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Patlite |
Storage Temperature Range |
-30℃ to +60℃ |
Mounting Direction |
Upright / Inverted Position |
Operating Ambient Temperature |
-20℃ to +50℃ |
Mounting Location |
Indoor/Outdoor |
Insulation Resistance |
More than 1 MΩ at 500 V DC between the power input lead and chassis |
Operating Ambient Humidity |
90% RH or Less, No Condensation |
Withstand Voltage |
AC 500 V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500 V for 1 min.) |
Standard Compliance |
UL 508, CSA-C22.2 No.14, FCC Part 15 Subpart B Class A, RoHS Directive (EN 50581), EMC Directive (EN 61000-6-4, EN 61000-6-2) |
Storage Humidity Range |
90% RH or Less, No Condensation |
