| Type | Stacked signal lights |
| Model No | LR4-4M2PJNA-RYGB |
| Light Source | LED |
| Protection Class | IP65 |
Type |
Stacked signal lights |
Model No |
LR4-4M2PJNA-RYGB |
Light Source |
LED |
Protection Class |
IP65 |
Type of Product |

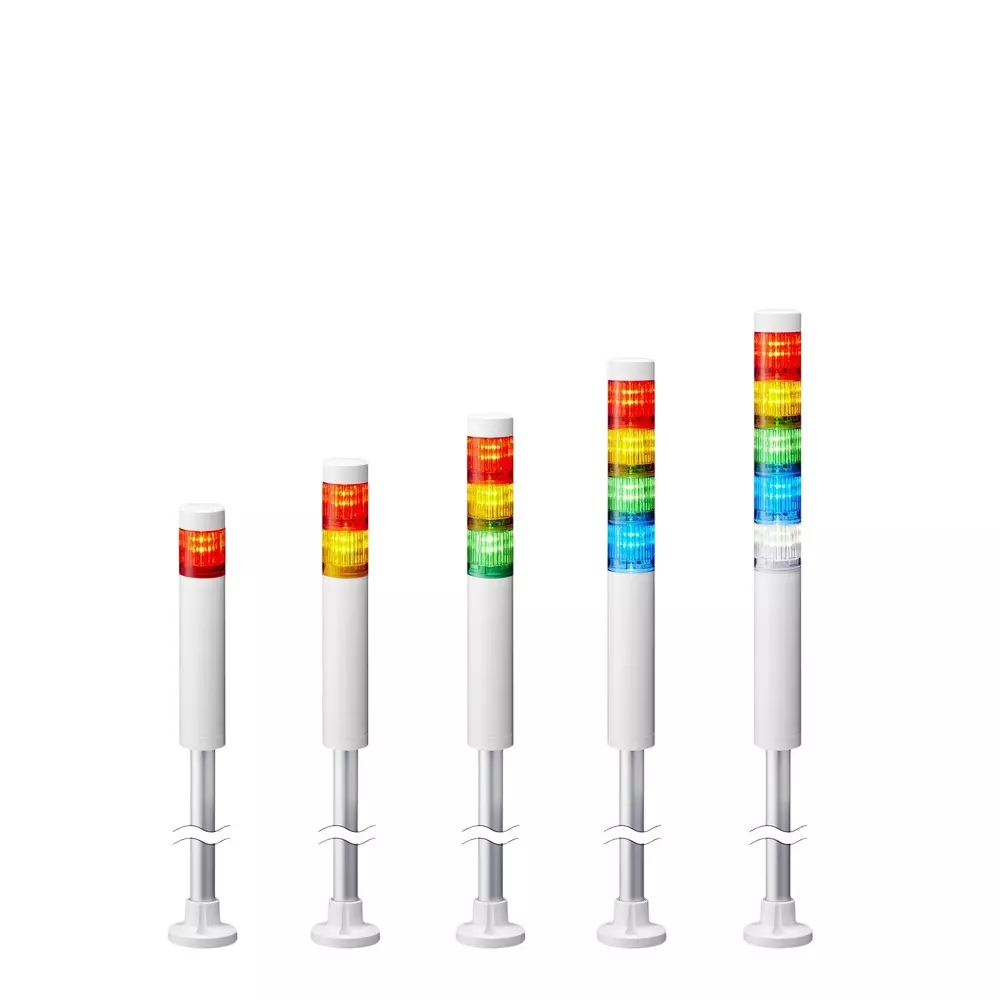

Stacked Signal Light Signal Tower |
Material |
ABS, AS |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Included Components |
+ 3 recessed pan head screws (M4x20) / 3 flange nuts (M4) |
Height (mm) |
329 (excluding cab-tyre cables and poles) |
No. of Tiers |
4 |
Import Country |
Direct Import from Japan |
Monotaro ID |
29212436 |
Rated Voltage (V) |
AC 100-240 |
Connection Method |
Cab tire cord |
Dimension (Φmm) |
40 |
Action Type |
Lights on, no flashing, no buzzer |
Power Consumption (W) |
7.2 |
Outer Diameter (Φmm) |
40 |
Rated Power Consumption (W) |
[Standard] LED unit per color: 1.5, Buzzer unit: 1.5, [Maximum] LED unit per color: 1.8, Buzzer unit: 1.8 |
Mass (Kg) |
0.57999999999999996 |
Applicable Standard |
UL508, CSA-C22.2 No.14KC (KN 61000-6-4, KN 61000-6-2)/EMC Directive (EN 61000-6-4, EN 61000-6-2)/RoHS Directive (EN 50581)/FCC Part15 SubpartB Class A/Low Voltage Directive (IEC/EN60947-5-1, EN62471) |
Type of Sign |
Pole mounting + circular bracket |
Location |
Indoor |
