| Model No | LR7-202WJBW-RY |
| Light Source | LED |
| Protection Class | IP65 (IEC 60529), NEMA TYPE 4x, 13 Environmental conditions: When installed in the upright position |

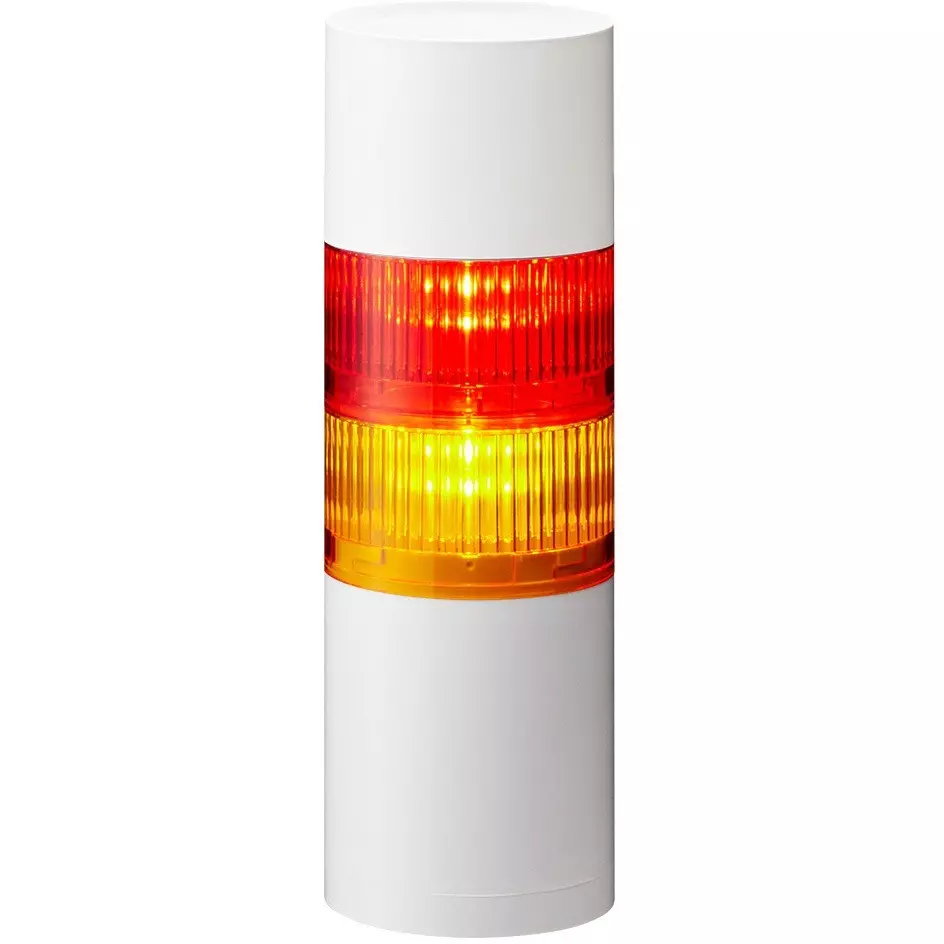

| Type of Product | Multilayer Signal Light Tower |
Model No |
LR7-202WJBW-RY |
Light Source |
LED |
Protection Class |
IP65 (IEC 60529), NEMA TYPE 4x, 13 Environmental conditions: When installed in the upright position |
Type of Product |
Multilayer Signal Light Tower |
Material |
PC |
Country of Origin |
Japan |
LED Color |
Red Yellow |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
No. of Tiers |
2 |
Import Country |
Direct Import from Japan |
Monotaro ID |
29211885 |
Rated Voltage (V) |
DC24 |
Connection Method |
Cap tire specifications |
Dimension (Φmm) |
70 |
Action Type |
Lights up, flashes, beeps |
Power Consumption (W) |
3.9 |
Outer Diameter (Φmm) |
70 |
Rated Power Consumption (W) |
[Standard] LED unit of each color: 1, buzzer unit: 1, [Maximum] LED unit of each color: 1.3, buzzer unit: 1.3 |
Mass (Kg) |
0.44 |
Conform to |
NPN/PNP |
Rated Voltage (DC) |
24 V |
Applicable Standard |
UL508, CSA-C22.2 No.14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN 50581), KC (KN 61000-6-4, KN 61000-6-2), FCC Part15 SubpartB Class A |
Type of Sign |
Direct attachment |
Location |
Indoor |
Correction |
LR |
